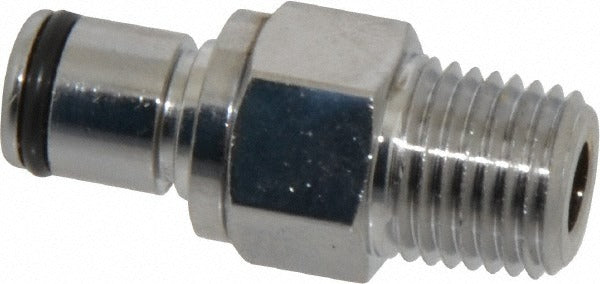

Cpc Colder Products LCD24004 Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS LCD24004 is a valved coupling insert designed for quick-disconnect fluid line connections in industrial and trade applications. Built from brass with a chrome-plated finish, this insert accepts a 1/4 NPT thread and incorporates an internal valve that closes automatically when the coupling is disconnected, preventing fluid loss and contamination. It is rated to 250 psi maximum working pressure and handles temperatures from -40 to 180 degrees F. Overall assembled length is 1.22 inches with an overall height of 0.49 inches. HVAC, refrigeration, and fluid-handling technicians use this type of fitting where clean, repeatable line connections are required.

The LCD24004 is suited for use in fluid transfer systems, coolant lines, and process piping where quick-connect capability is needed without tools. The 1/4 NPT male thread makes it compatible with standard pipe fittings and manifolds found in residential and light commercial mechanical systems. The valved design makes it appropriate for pressurized lines where disconnection must occur without draining the system. This fitting belongs to the LC series from CPC COLDER PRODUCTS.

Key Features

• Valved insert design automatically seals line upon disconnection to prevent fluid loss
• Rated to 250 psi maximum working pressure
• Operating temperature range of -40 to 180 degrees F
• 1/4 NPT thread for compatibility with standard pipe fittings
• Brass construction with chrome-plated finish for corrosion resistance
• Compact profile at 1.22 inches overall length and 0.49 inches overall height

Compatibility

Designed as an OEM-style replacement or new-installation fitting for fluid systems using standard 1/4 NPT connections and CPC LC series quick-disconnect couplings.

Installation Notes

Installation is performed by plumbing, HVAC, or fluid-system technicians. Shut off and depressurize the fluid line before threading the insert into the receiving port. Apply appropriate thread sealant or PTFE tape to the NPT threads per standard pipe-fitting practice and applicable IPC guidelines. Do not exceed the 250 psi rated working pressure or the 180 degrees F maximum temperature limit.
