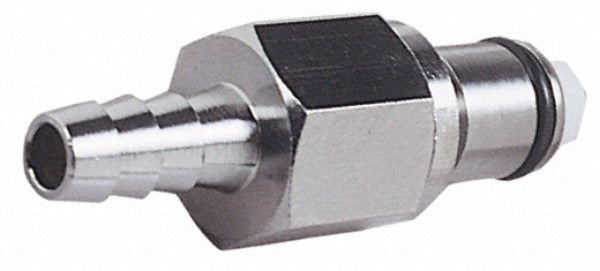

Cpc Colder Products LCD22006 Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS LCD22006 is a valved inline coupling insert designed for quick disconnect hose barb applications. Built from brass with a chrome plated finish, this insert accepts a 3/8 inch inside tube diameter hose barb connection. It is rated for up to 250 psi and operates across a temperature range of -40 to 180 degrees F, making it suitable for demanding fluid transfer systems. The overall assembly measures 1.87 inches in length and 0.65 inches in height. Plumbing and mechanical contractors, as well as industrial maintenance technicians, typically install this type of fitting in liquid handling and transfer lines.

This coupling insert is appropriate for use in fluid conveyance systems where fast, repeatable connect and disconnect cycles are required. The valved design allows the insert to close off flow when disconnected, reducing fluid spillage during line changes. It suits both residential and light commercial applications involving coolant lines, process fluid circuits, and similar closed-loop systems. The LC series designation identifies it within the CPC COLDER PRODUCTS quick disconnect product family.

Key Features

• Valved inline design closes off flow automatically upon disconnection, minimizing fluid loss
• Rated to 250 psi maximum operating pressure
• Wide service temperature range from -40 to 180 degrees F
• 3/8 inch inside tube diameter hose barb connection
• Brass construction with chrome plated finish for corrosion resistance
• Compact profile at 1.87 inches overall length and 0.65 inches overall height

Compatibility

Designed as an OEM-style replacement or addition for quick disconnect hose barb coupling systems accepting a 3/8 inch inside tube diameter insert within the CPC COLDER PRODUCTS LC series.

Installation Notes

Installation is typically performed by licensed plumbers or qualified mechanical technicians. Before servicing or replacing any coupling insert, depressurize the line and relieve all residual fluid pressure. Ensure the hose barb is fully seated and secured with an appropriate clamp to prevent leakage under operating pressure. Follow applicable local plumbing codes and system manufacturer guidelines when integrating quick disconnect fittings into fluid transfer assemblies.
