Cpc Colder Products LCD22004 Quick Disconnect Coupling

Product Description

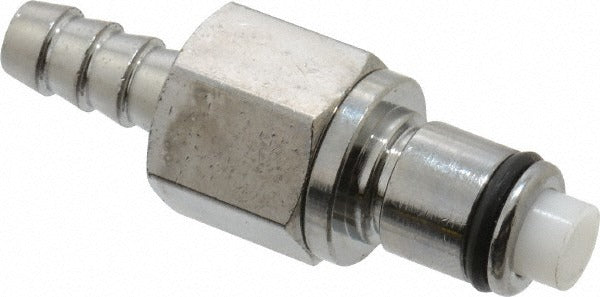

The CPC COLDER PRODUCTS LCD22004 is a valved inline coupling insert designed for quick-disconnect fluid line applications. Constructed from brass with a chrome-plated finish, this insert accepts 1/4-inch inside diameter hose barb connections and is rated for pressures up to 250 psi. The overall length is 2 inches with an overall height of 0.65 inches. It is part of the LC Series and is intended for use in fluid transfer systems where fast, repeatable connect and disconnect cycles are required. Installation is performed by plumbing and fluid handling technicians working on process, cooling, or transfer lines.

This coupling insert is suited for both light industrial and commercial fluid system applications where a secure, leak-resistant inline connection is needed. The hose barb end accepts 1/4-inch ID tubing directly, making it compatible with flexible hose assemblies found in cooling circuits, process equipment, and similar systems. Its operating temperature range of -40 to 180 degrees F makes it appropriate for a broad range of ambient and fluid temperature conditions.

Key Features

• Brass construction with chrome-plated finish for corrosion resistance
• Valved design automatically closes the flow path upon disconnection, minimizing fluid spillage
• Rated to 250 psi maximum working pressure
• Operating temperature range: -40 to 180 degrees F
• Hose barb end fits 1/4-inch inside diameter tubing
• Compact inline profile: 2 inches overall length, 0.65 inches overall height

Compatibility

Designed as an OEM-style replacement or service insert for LC Series quick-disconnect coupling systems used in fluid transfer and process cooling line assemblies.

Installation Notes

Install and service by a qualified plumbing or fluid system technician. Before disconnecting or replacing any coupling insert, depressurize the fluid line completely and purge residual pressure per system service procedures. Secure the hose barb end to compatible 1/4-inch ID flexible tubing using an appropriately sized clamp. Verify rated pressure and temperature limits are not exceeded in the target application before returning the system to service.
