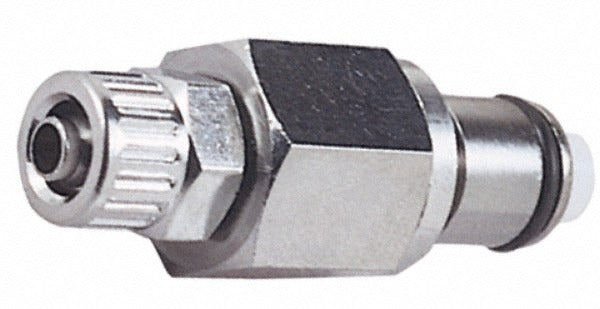

Cpc Colder Products LCD20004NA Qd Inline Coupling Insert

Product Description

The CPC COLDER PRODUCTS LCD20004NA is a PTF brass quick disconnect inline coupling insert rated for fluid and pneumatic systems requiring reliable push-to-connect or disconnect capability. Constructed from brass with a chrome plated finish, this insert handles pressures up to 250 psi and operates across a wide temperature range of -40 to 180 degrees F. The compact design measures 1.87 inches overall length and 0.53 inches overall height, making it well suited for tight inline installations. Plumbers, HVAC technicians, and industrial service technicians use this type of fitting in systems where fast, tool-free line connections are required.

This inline coupling insert is appropriate for residential and commercial fluid handling, pneumatic, and process systems where quick disconnect fittings are specified. The LC series designation places it within a family of standardized couplings commonly used in equipment plumbing, coolant lines, and low-to-medium pressure pneumatic circuits. Its PTF thread form ensures compatibility with standard tapered thread ports in metallic manifolds, valves, and inline fittings.

Key Features

• Rated to 250 psi maximum working pressure
• Operating temperature range of -40 to 180 degrees F
• PTF thread form for reliable sealing in tapered thread applications
• Brass body with chrome plated finish for corrosion resistance
• Compact inline profile: 1.87 inches OAL x 0.53 inches overall height
• LC series quick disconnect design for fast, tool-free connections

Compatibility

Designed as an OEM-style replacement or direct-fit insert for LC series quick disconnect coupling bodies used in fluid and low-to-medium pressure pneumatic inline applications.

Installation Notes

Installation of quick disconnect coupling inserts is typically performed by plumbers, HVAC technicians, or industrial pipe fitters. Depressurize and drain the system fully before removing or installing any fitting. Apply appropriate thread sealant to PTF threads per the system fluid compatibility requirements, and do not overtighten threaded connections in brass fittings. Verify pressure and temperature ratings match the application before returning the system to service.
