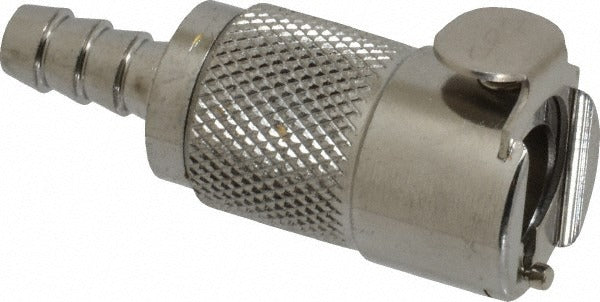

Cpc Colder Products LCD17004 Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS LCD17004 is a valved inline coupling body designed for quick-disconnect fluid line connections. Built from brass with a chrome-plated finish, this hose barb style fitting accepts a 1/4 inch inside tube diameter and handles pressures up to 250 psi. The overall assembly measures 2 inches in length with an overall height of 0.89 inches, making it a compact, durable solution for tight plumbing runs. It is rated for a temperature range of -40 to 180 degrees F. Plumbers, HVAC technicians, and industrial service professionals install this fitting wherever a reliable, leak-resistant quick-disconnect coupling is required in a fluid or pneumatic circuit.

This inline coupling body is suited for residential and light commercial fluid handling applications where quick line disconnection is necessary without tool use. The hose barb connection style is compatible with flexible tubing, making it a practical choice for equipment service ports, coolant loops, and similar low-to-medium pressure service lines. The built-in valve prevents fluid loss when the coupling halves are separated, reducing mess and downtime during service operations.

Key Features

• Valved design prevents fluid spillage when coupling is disconnected
• Brass construction provides corrosion resistance in fluid service environments
• Chrome-plated finish adds surface protection and a clean appearance
• Rated to 250 psi maximum working pressure
• Wide temperature range: -40 to 180 degrees F
• Hose barb end accommodates 1/4 inch inside diameter flexible tubing
• Compact form factor: 2 inches overall length, 0.89 inches overall height

Compatibility

Designed as an OEM-style inline coupling body for fluid and pneumatic quick-disconnect applications using 1/4 inch inside diameter flexible hose barb tubing. Part of the CPC COLDER PRODUCTS LC series (UNSPSC 27121700).

Installation Notes

Installation should be performed by a qualified plumbing or mechanical technician. Depressurize and drain the fluid line completely before removing or installing any coupling component. Ensure the hose barb is fully seated and the tubing is secured with an appropriate clamp rated for the working pressure. Verify the completed connection is leak-free before returning the system to service.
