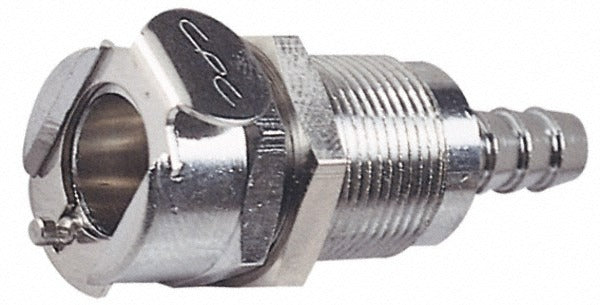

Cpc Colder Products LCD16006NA Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS LCD16006NA is a hose barb valved panel mount coupling body designed for quick disconnect fluid connections in industrial and trade plumbing applications. Constructed from brass with a chrome plated finish, this fitting accepts 3/8 inch inside diameter tubing and handles pressures up to 250 psi. It measures 1.87 inches overall length by 0.89 inches overall height and weighs 0.2 pounds. The valved design closes flow when the coupling is disconnected, preventing fluid spill and contamination during service. Licensed plumbers, fluid system technicians, and industrial maintenance professionals install this type of fitting.

This coupling body is suited for panel mount installations where a secure, leak-free quick disconnect connection is required. The 3/8 inch hose barb end connects directly to compatible flexible tubing. The rated temperature range of -40 to 180 degrees F makes it appropriate for a broad range of fluid handling systems including cooling circuits, industrial fluid lines, and process plumbing. The panel mount design allows secure bulkhead-style installation in equipment enclosures or manifold panels.

Key Features

• Valved body stops flow automatically when coupling is disconnected, reducing spill risk
• Brass construction with chrome plated finish for corrosion resistance in fluid system environments
• Rated to 250 psi maximum working pressure
• Operates across a wide temperature range from -40 to 180 degrees F
• 3/8 inch inside diameter hose barb connection for direct tubing attachment
• Panel mount design for secure bulkhead installation in equipment or enclosures

Compatibility

Designed as an OEM-style replacement or new installation fitting for quick disconnect hose barb valved panel mount coupling applications in industrial and commercial fluid handling systems.

Installation Notes

Installation is typically performed by a licensed plumber or qualified fluid systems technician. Shut off and depressurize the fluid system completely before disconnecting or installing any coupling component. Verify that the tubing inside diameter and system pressure and temperature ratings are compatible with this fitting before assembly. Follow applicable plumbing codes and the equipment manufacturer guidelines for panel mount fitting installations.
