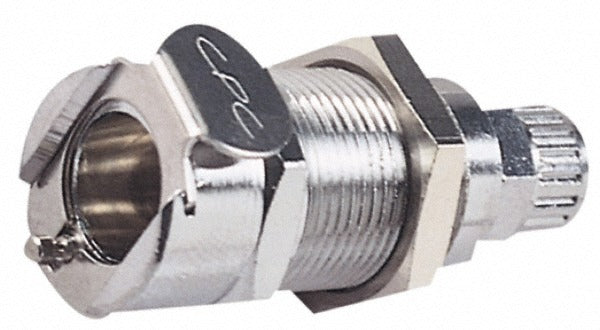

Cpc Colder Products LCD12006NA Panel Mount Coupling Body

Product Description

The CPC COLDER PRODUCTS LCD12006NA is a PTF brass, valved panel mount quick disconnect coupling body designed for use in fluid handling systems requiring secure, leak-resistant connections. This coupling body features a chrome-plated finish and is rated for pressures up to 250 psi, with an operating temperature range of -40 degrees F to 180 degrees F. At 2 inches overall length and 0.89 inches overall height, it is a compact fitting suited for panel-mounted installations. Licensed HVAC technicians, plumbers, and fluid system technicians install this type of coupling in both industrial and commercial applications.

This valved quick disconnect coupling body is intended for panel mount configurations where a reliable, self-sealing connection point is needed. The valved design prevents fluid loss when the coupling is disconnected, making it appropriate for pressurized fluid circuits. It fits into system panels or enclosures where tubing or hose lines must be connected and disconnected with minimal downtime. The LC series designation identifies its product family within the CPC COLDER PRODUCTS lineup, and the PTF thread form ensures compatibility with standard tapered female thread fittings.

Key Features

• Valved design prevents fluid spillage upon disconnection
• Rated to 250 psi maximum working pressure
• Operating temperature range of -40 degrees F to 180 degrees F
• Chrome-plated PTF brass construction for corrosion resistance
• Panel mount configuration for fixed installation in enclosures or panels
• Compact footprint: 2 inches overall length by 0.89 inches overall height

Compatibility

Designed as an OEM-style replacement or new-installation panel mount coupling body for pressurized fluid handling systems using PTF thread connections in the LC series product family.

Installation Notes

Installation should be performed by a qualified plumbing or fluid systems technician familiar with pressurized fitting installations. Depressurize and drain the fluid circuit completely before removing or installing any coupling components. Use appropriate thread sealant compatible with the system fluid when making PTF threaded connections. Verify that the installed assembly meets the pressure and temperature requirements of the application before returning the system to service.
