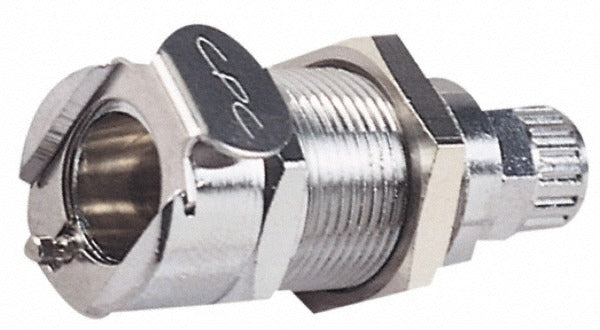

Cpc Colder Products LCD12004NA Panel Mount Coupling Body

Product Description

The CPC COLDER PRODUCTS LCD12004NA is a PTF brass, valved panel mount coupling body designed for quick-disconnect fluid line connections in industrial and trade applications. It features a chrome-plated finish and is rated for up to 250 psi working pressure. The operating temperature range spans -40 degrees F to 180 degrees F, making it suitable for a wide range of process fluid systems. At 1.87 inches overall length and 0.89 inches overall height, it provides a compact footprint for panel-mounted installations. Plumbers, pipefitters, and fluid system technicians install this type of fitting where secure, leak-free quick-disconnect access through a bulkhead or panel is required.

This coupling body is used in applications where fluid lines must be quickly connected and disconnected at a panel interface without system drain-down, thanks to the integral valve that closes on disconnect. Typical install scenarios include process equipment, hydraulic panels, cooling systems, and instrumentation enclosures where controlled fluid handling is critical. The PTF thread form ensures compatibility with standard tapered thread fittings used in plumbing and fluid power systems.

Key Features

• Valved design closes automatically on disconnect to prevent fluid loss
• Rated to 250 psi maximum working pressure
• Operating temperature range: -40 degrees F to 180 degrees F
• PTF (tapered) thread form for secure, leak-resistant connections
• Chrome-plated brass construction for corrosion resistance
• Compact profile: 1.87 inches OAL x 0.89 inches overall height

Compatibility

Part of the LC series quick-disconnect product line from CPC COLDER PRODUCTS. Designed as a panel mount coupling body for use with compatible LC series quick-disconnect inserts and mating halves in PTF brass configurations.

Installation Notes

Installation is typically performed by a plumber or pipefitter following applicable IPC and fluid system guidelines. Shut off system pressure and depressurize the line before removing or installing any quick-disconnect fitting. Use appropriate thread sealant rated for the fluid media and pressure range when making PTF threaded connections. Do not overtighten the panel mount fitting; secure it per the panel material and thickness to prevent housing stress or seal damage.
