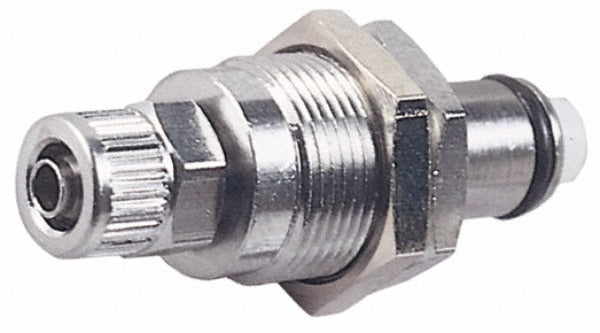

Cpc Colder Products LC40006NA Panel Mount Coupling Insert

Product Description

The CPC COLDER PRODUCTS LC40006NA is a PTF brass quick disconnect panel mount coupling insert designed for fluid handling systems requiring reliable, tool-free connection and disconnection at a fixed panel location. Built from brass with a chrome-plated finish, this insert withstands pressures up to 250 psi and operates across a wide temperature range of -40 to 180 degrees F. At 1.22 inches overall length and 0.63 inches overall height, it fits into compact panel cutouts without sacrificing flow performance. Plumbers, fluid system technicians, and industrial service professionals install this type of fitting in applications where repeated connect-disconnect cycles are required at a stationary mounting surface.

This panel mount coupling insert suits residential and light commercial fluid distribution systems, coolant loops, pneumatic lines, and process equipment where a secure, flush-mount quick disconnect is required. The LC series designation indicates it belongs to a standardized product family, which supports interchangeability across similarly rated LC-series components. It is intended for use in systems where the fitting is anchored through a panel or enclosure wall, allowing the mating half to be connected and removed from the front side without accessing the back.

Key Features

• PTF brass construction provides corrosion resistance for fluid and pneumatic service
• Chrome-plated finish adds surface protection and a clean appearance at the panel face
• Rated to 250 psi maximum working pressure
• Wide service temperature range: -40 to 180 degrees F
• Compact footprint: 1.22 inches overall length x 0.63 inches overall height
• Panel mount design anchors the insert to an enclosure or bulkhead for front-access connect-disconnect

Compatibility

Designed as an OEM-style panel mount coupling insert within the LC series quick disconnect product family. Consult CPC COLDER PRODUCTS documentation to confirm mating half compatibility before installation.

Installation Notes

Installation is typically performed by a qualified plumber or fluid system technician. Depressurize and drain the line before removing or installing any quick disconnect fitting. Verify panel cutout dimensions match the fitting's mounting requirements and that the panel material is rated for the operating pressure and temperature of the system. Follow applicable IPC or system manufacturer guidelines for fitting installation and pressure testing after service.
