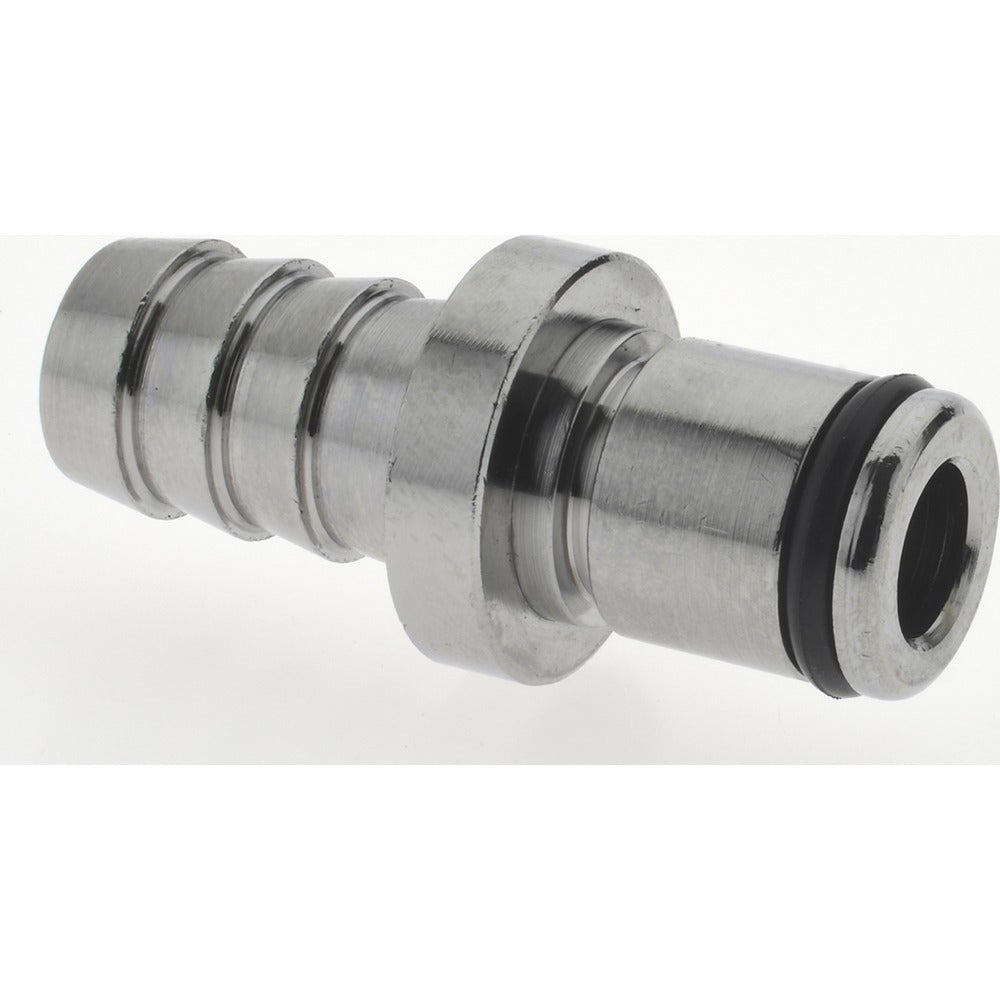

Cpc Colder Products LC22006 Brass Qd Hose Barb Coupling Insert

Product Description

The CPC COLDER PRODUCTS LC22006 is a brass quick disconnect hose barb inline coupling insert designed for fluid-handling systems that require fast, reliable connection and disconnection without tools. Sized for 3/8 inch inside diameter tubing, this insert measures 1.22 inches overall length and 0.65 inches overall height with a chrome-plated finish. It is rated for pressures up to 250 psi and operates across a temperature range of -40 to 180 degrees F, making it suited for a broad range of industrial, HVAC, and plumbing applications. Licensed trades and fluid system technicians use this fitting where hose barb terminations and quick disconnect convenience are both required.

The LC22006 is intended for use in inline fluid circuit applications where a hose barb connection is required on the insert side of a quick disconnect coupling pair. Typical installations include hydronic systems, cooling lines, process fluid circuits, and equipment that requires routine disconnection for service or maintenance. The chrome-plated brass construction suits both indoor and moderate-duty fluid-transfer environments.

Key Features

• 3/8 inch inside diameter hose barb sizing for standard flexible tubing
• Rated to 250 psi maximum working pressure
• Operating temperature range: -40 to 180 degrees F
• Chrome-plated brass construction for corrosion resistance and durability
• Inline coupling insert design for tool-free quick disconnect operation
• Compact profile: 1.22 inches overall length x 0.65 inches overall height

Compatibility

Designed as part of the LC series quick disconnect coupling system. Pair with the corresponding LC series socket body to complete the quick disconnect connection. Confirm mating body compatibility by series and size before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid system fittings and hose barb connections. Depressurize and drain the system before removing or installing any coupling components. Ensure the hose is fully seated over the barb and secured with an appropriate clamp rated for the system pressure. Verify that system pressure and temperature do not exceed the ratings of this fitting or any other component in the circuit.
