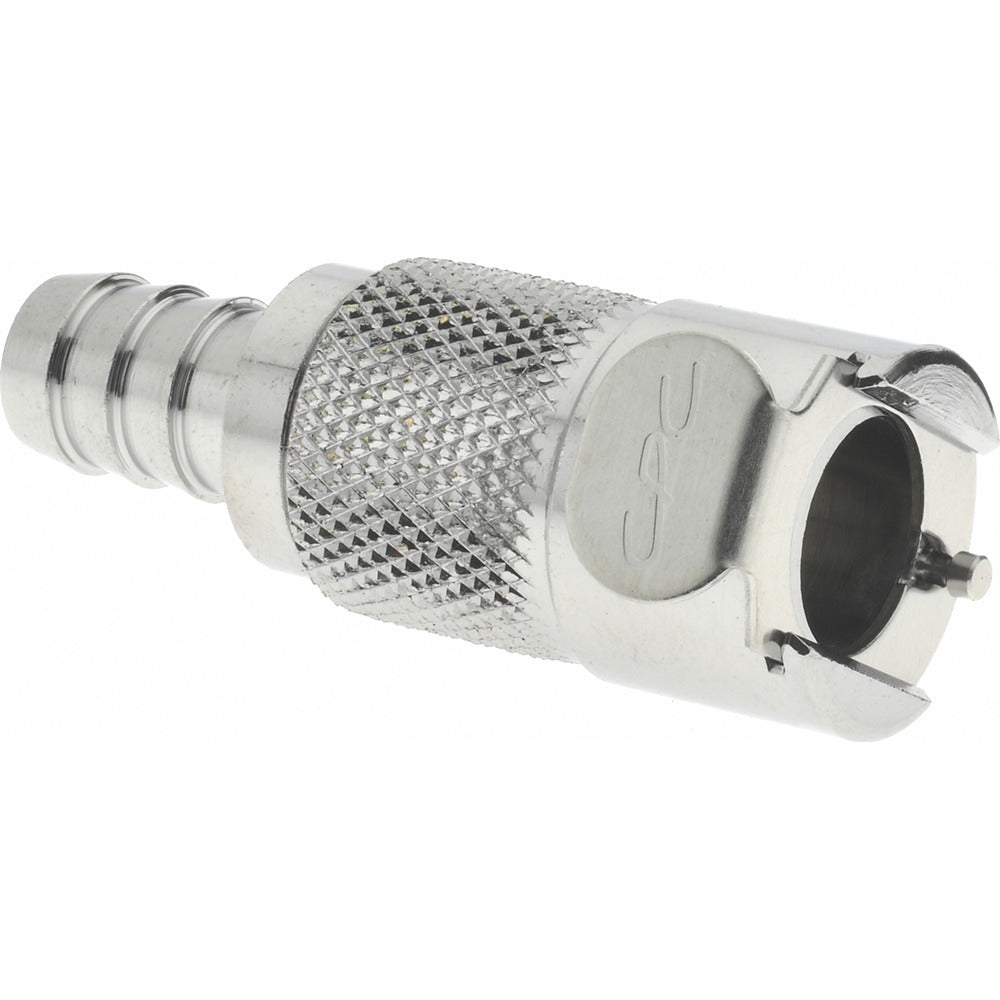

Cpc Colder Products LC17006 Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS LC17006 is a brass quick disconnect hose barb inline coupling body designed for fluid handling systems requiring reliable push-to-connect or disconnect functionality. Built from brass with a chrome plated finish, this coupling body accepts 3/8 inch inside diameter tubing via a hose barb connection style. It is rated to 250 psi maximum working pressure and handles temperatures ranging from -40 to 175 degrees F, making it suitable for a wide range of industrial, HVAC, and fluid transfer applications. Installation is typically performed by plumbers, HVAC technicians, or industrial maintenance professionals.

This inline coupling body is suited for residential and light commercial fluid systems where secure, serviceable connections are required. The hose barb fitting style works with flexible tubing runs, and the inline orientation keeps plumbing routing straightforward. The LC series from CPC COLDER PRODUCTS is commonly used in cooling circuits, fluid distribution manifolds, and equipment plumbing where quick connect and disconnect capability reduces service time.

Key Features

• 3/8 inch inside diameter hose barb connection for flexible tubing
• 250 psi maximum working pressure rating
• Operating temperature range of -40 to 175 degrees F
• Brass construction with chrome plated finish for corrosion resistance
• Compact overall dimensions: 1.87 inches overall length by 0.75 inches overall height
• Inline coupling body orientation for straightforward in-line plumbing runs

Compatibility

Designed as an OEM-style replacement or addition for fluid handling systems requiring a 3/8 inch hose barb inline quick disconnect coupling in the CPC COLDER PRODUCTS LC series.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician. Depressurize and drain the fluid circuit completely before servicing any coupling or fitting. Secure the hose barb connection with an appropriate clamp to maintain the rated pressure seal. Verify that the system fluid and temperature range are within the rated limits of this fitting before placing into service.
