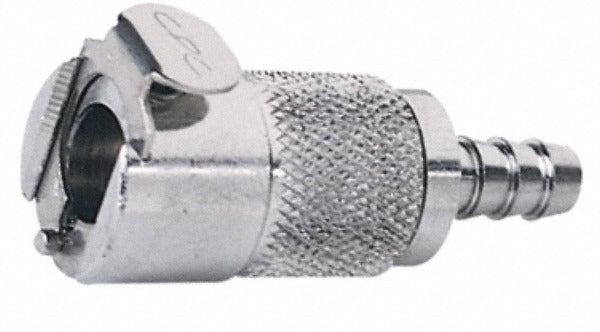

Cpc Colder Products LC17005 Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS LC17005 is a brass quick disconnect hose barb inline coupling body rated for demanding fluid transfer applications. Built with a 5/16 inch inside tube diameter, it accepts standard hose barb connections and delivers a secure, tool-free inline coupling. The chrome plated brass construction resists corrosion and wear in wet or industrial environments. With a pressure rating of 250 psi and a temperature range of -40 to 180 degrees F, this coupling body handles a wide range of service conditions. Overall assembled length is 1.87 inches with an overall height of 0.75 inches. Licensed plumbers, HVAC technicians, and fluid system installers rely on this type of fitting for clean, repeatable connections in both equipment and plumbing assemblies.

This coupling body is suited for use in residential and light commercial fluid handling systems where inline quick disconnect capability is required. Typical applications include equipment cooling loops, chemical transfer lines, beverage dispensing systems, and general fluid conveyance where hose barb terminations are standard. The inline body style allows integration directly into a hose run without the need for additional fittings or adapters, keeping the installation compact and leak-resistant.

Key Features

• 5/16 inch inside tube diameter for compatibility with standard hose barb assemblies
• 250 psi maximum pressure rating for high-demand fluid transfer service
• Operating temperature range of -40 to 180 degrees F
• Chrome plated brass construction for corrosion resistance and durability
• Inline coupling body style for direct integration into hose runs
• Compact form factor: 1.87 inches overall length by 0.75 inches overall height

Compatibility

Designed as an OEM-style inline quick disconnect fitting for fluid transfer systems that use 5/16 inch hose barb connections and require a removable coupling interface.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician. Depressurize and drain the fluid system completely before installing or removing any quick disconnect fitting. Ensure hose barb connections are fully seated and secured with appropriate clamps to prevent leakage under pressure. Verify that system operating pressures and temperatures remain within the rated limits of this coupling body before returning the system to service.
