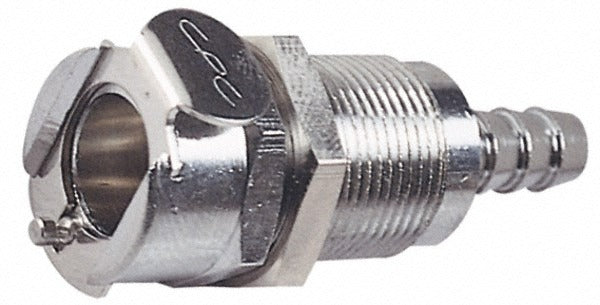

Cpc Colder Products LC16004NA Quick Disconnect Coupling Body

Product Description

The CPC COLDER PRODUCTS LC16004NA is a hose barb panel mount coupling body designed for quick disconnect fluid line connections in industrial and mechanical service applications. Built from brass with a chrome-plated finish, this coupling body accepts a 1/4 inch inside tube diameter hose barb connection and mounts directly to a panel or bulkhead for secure, repeatable service points. It is rated to 250 psi maximum working pressure and handles a temperature range of -40 to 180 degrees F. The overall assembled length is 1.87 inches with an overall height of 0.75 inches. Installation is typically performed by plumbing, mechanical, or industrial service technicians.

This coupling body is suited for use in fluid handling systems where a panel-mounted quick disconnect fitting is required. Common applications include hydraulic lines, coolant circuits, pneumatic systems, and industrial fluid transfer setups where frequent connection and disconnection are part of routine maintenance. The LC series design supports consistent mating with compatible LC series coupling inserts. The chrome plating provides corrosion resistance in wet or exposed service environments.

Key Features

• 1/4 inch inside tube diameter hose barb connection for secure line attachment
• Brass construction with chrome-plated finish for corrosion resistance
• 250 psi maximum working pressure rating
• Wide operating temperature range: -40 to 180 degrees F
• Panel mount design allows bulkhead installation for fixed service points
• Compact footprint: 1.87 inches overall length, 0.75 inches overall height

Compatibility

Designed as an OEM-style panel mount coupling body within the LC series quick disconnect product line. Compatible mating inserts must match the LC series coupling standard. Verify hose barb size and series designation before installation.

Installation Notes

Installation of panel mount quick disconnect fittings is typically performed by licensed plumbers or qualified mechanical technicians. Depressurize and drain the fluid system completely before removing or installing any coupling components. Ensure the panel or bulkhead cutout matches the coupling body mounting dimensions before securing. Follow applicable IPC or ASME piping standards for the fluid type and pressure class involved.
