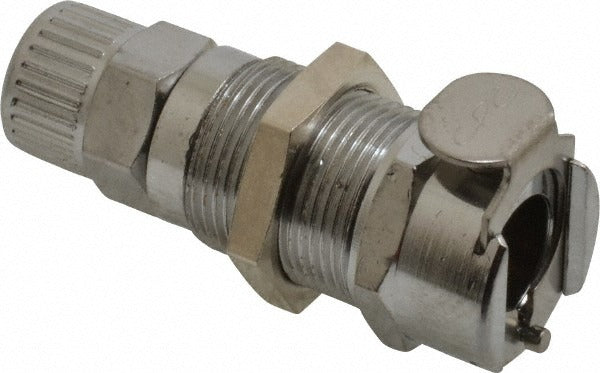

Cpc Colder Products LC12006NA Quick Disconnect Coupling

Product Description

The CPC COLDER PRODUCTS LC12006NA is a PTF brass, panel mount coupling body designed for quick-disconnect fluid line applications. Rated to 250 psi maximum working pressure, this fitting operates across a wide temperature range of -40 to 180 degrees F. The chrome-plated finish provides corrosion resistance suited to industrial and OEM fluid handling environments. At 2 inches overall length and 0.75 inches overall height, it installs directly into a panel or bulkhead to provide a fixed, secure connection point for mating quick-disconnect plugs. Licensed plumbers, fluid power technicians, and OEM assembly technicians are the typical installers.

This coupling body is used in panel or bulkhead installations where a quick-disconnect fitting must be mounted flush or semi-flush to a surface. Typical applications include industrial fluid handling systems, process equipment, and OEM machinery where repeated connect and disconnect cycles are required without tools. The LC series designation places this fitting within CPC COLDER PRODUCTS standard LC product line. PTF thread form ensures compatibility with standard parallel thread fittings used across plumbing and fluid transfer assemblies.

Key Features

• 250 psi maximum working pressure for demanding fluid line service
• Wide operating temperature range: -40 to 180 degrees F
• PTF brass construction for strength and corrosion resistance
• Chrome-plated finish for additional surface protection
• Panel mount design for bulkhead or surface installation
• Compact profile: 2 inches OAL x 0.75 inches overall height

Compatibility

Designed as an OEM-style panel mount coupling body for use with compatible LC series quick-disconnect plugs in fluid handling and process equipment installations.

Installation Notes

Installation is typically performed by a licensed plumber, fluid power technician, or qualified OEM assembly technician. Depressurize and drain the fluid line fully before removing or installing any quick-disconnect fitting. Ensure the panel or bulkhead opening matches the fitting dimensions to achieve a secure, leak-free mount. Follow applicable fluid system codes and the equipment manufacturer guidelines for torque and sealing requirements.
