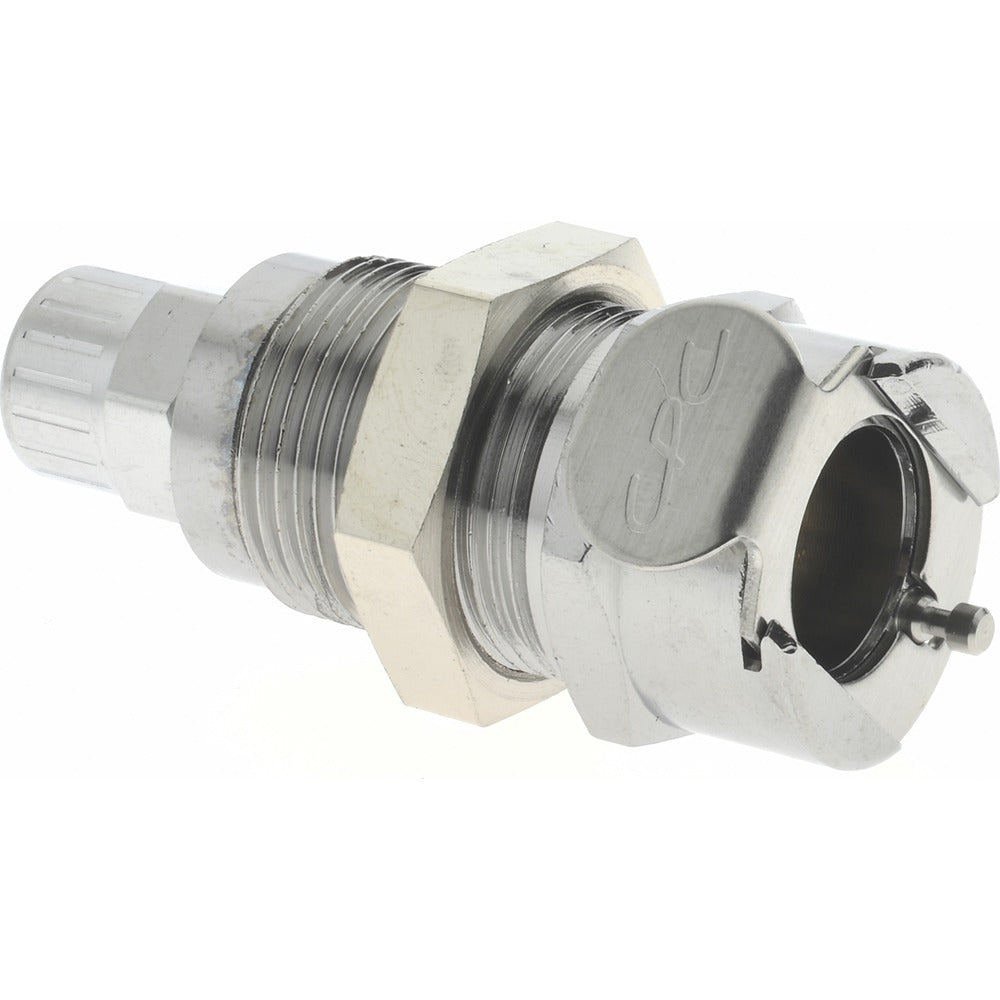

Cpc Colder Products LC12004NA Panel Mount Coupling Body

Product Description

The CPC COLDER PRODUCTS LC12004NA is a PTF brass quick disconnect panel mount coupling body designed for fluid and pneumatic systems requiring secure, leak-free connections at a fixed panel or bulkhead location. Rated to 250 psi maximum working pressure and built to operate across a wide temperature range of -40 to 180 degrees F, this coupling body is chrome plated for corrosion resistance and durability. It measures 2 inches overall length by 0.75 inches overall height, making it a compact solution for panel-mounted connection points. Plumbers, HVAC technicians, and industrial fluid system installers commonly work with fittings of this type.

This coupling body is suited for use in residential and light commercial fluid handling systems, hydraulic assemblies, pneumatic circuits, and any application where a quick disconnect fitting must be fixed to a panel or enclosure wall. The PTF thread form ensures compatibility with standard tapered pipe thread fittings. The chrome plating makes it appropriate for installations where surface finish and corrosion resistance are priorities. It is a single-piece coupling body intended to accept a mating quick disconnect insert.

Key Features

• 250 psi maximum working pressure rating for demanding fluid and pneumatic applications
• Operating temperature range of -40 to 180 degrees F suits a wide variety of service environments
• PTF brass construction provides strength and compatibility with standard tapered pipe thread systems
• Chrome plated finish delivers corrosion resistance and a clean surface appearance
• Compact 2 inches overall length by 0.75 inches overall height for tight panel installations
• Panel mount design allows the coupling body to be fixed to an enclosure or bulkhead surface

Compatibility

Designed as an OEM-style replacement or new-installation panel mount quick disconnect coupling body for fluid and pneumatic systems using PTF threaded connections. Consult the mating insert specifications to confirm proper coupling engagement before installation.

Installation Notes

Installation of quick disconnect panel mount fittings should be performed by a qualified plumber or fluid systems technician. Depressurize and isolate the system completely before removing any existing fitting or installing this coupling body. Apply appropriate thread sealant to PTF threads in accordance with the system manufacturer and applicable plumbing codes. Do not overtighten, as brass fittings can be damaged if excessive torque is applied.
