Cpc Colder Products LC10004 Quick Disconnect Coupling Body

Product Description

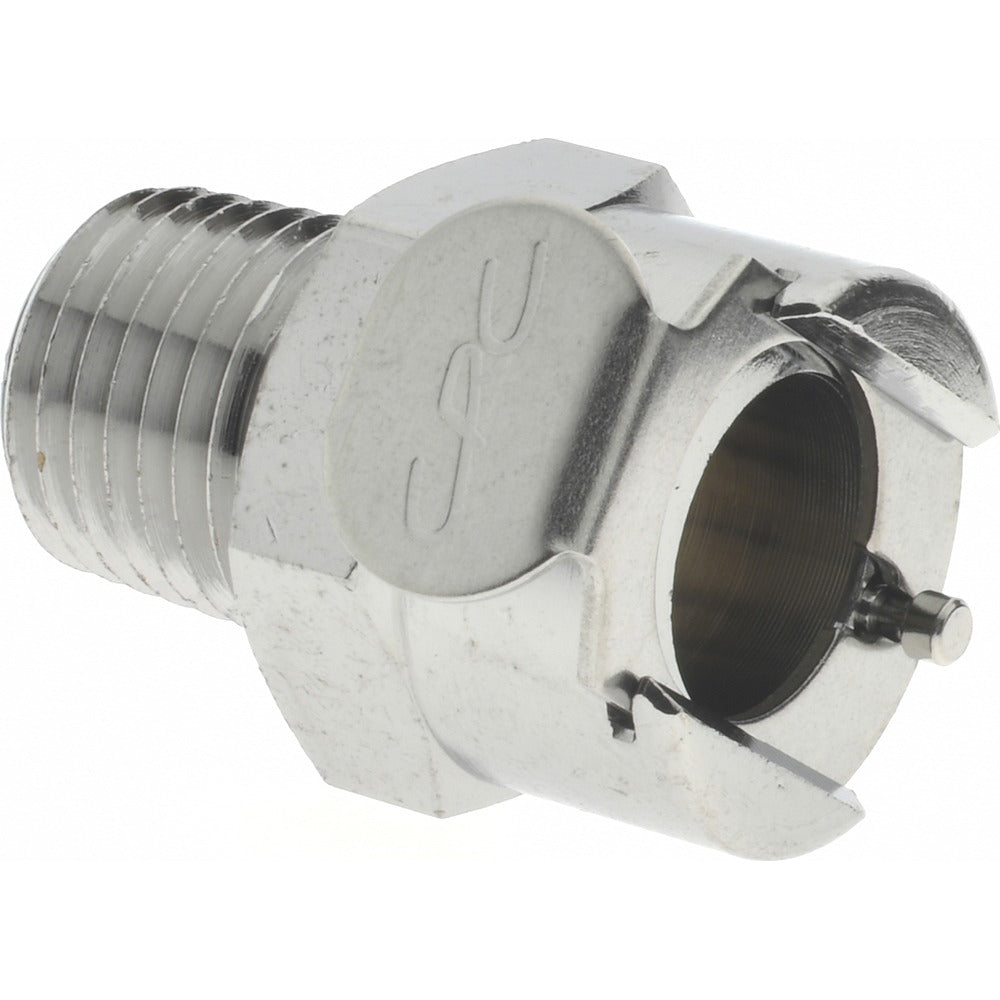

The CPC COLDER PRODUCTS LC10004 is a brass quick disconnect coupling body with a 1/4 NPT thread connection, designed for use in fluid handling systems that require reliable, repeatable connect and disconnect cycles. Chrome plated for corrosion resistance, this coupling body handles pressures up to 250 psi and operates across a wide temperature range of -40 to 180 degrees F. Overall assembled length is 1.14 inches with an overall height of 0.75 inches. It is sized for plumbing, cooling, and industrial fluid circuit applications where compact inline connections are needed.

This coupling body is suited for residential and light commercial fluid systems, industrial cooling lines, and equipment that requires tool-free line disconnection. The LC series design is commonly used in applications where technicians need to break and restore fluid connections without line draining or tool use. Plumbers, mechanical contractors, and equipment service technicians working on water-cooled or fluid-circulating systems are the typical installers.

Key Features

• 1/4 NPT thread standard for broad compatibility with threaded pipe and fittings
• Brass construction with chrome plating for corrosion resistance and durability
• 250 psi maximum working pressure
• Operating temperature range: -40 to 180 degrees F
• Compact profile: 1.14 inches overall length, 0.75 inches overall height
• Quick disconnect design allows tool-free fluid line separation and reconnection

Compatibility

Designed as an OEM-style replacement or service fitting for fluid handling systems using 1/4 NPT threaded connections in the CPC COLDER PRODUCTS LC series.

Installation Notes

Installation is typically performed by licensed plumbers or mechanical contractors working on fluid circuit systems. Shut off and depressurize the fluid line completely before removing or installing any quick disconnect fitting. Apply thread sealant appropriate for the fluid media to NPT threads before assembly, following applicable IPC or system manufacturer guidelines. Do not exceed the rated working pressure of 250 psi during operation.
