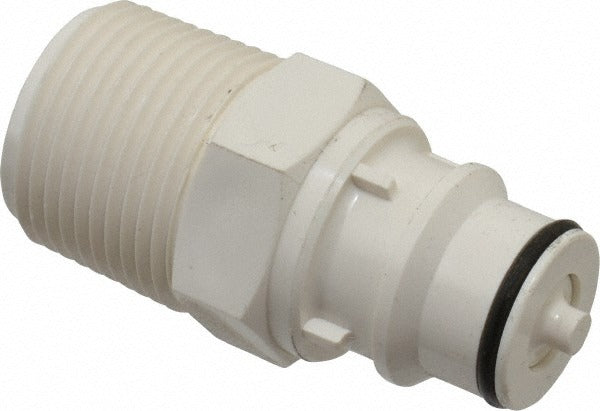

Cpc Colder Products HFCD241235 Inline Threaded Male Plug

Product Description

The CPC COLDER PRODUCTS HFCD241235 is an inline threaded male plug designed for fluid handling and quick-disconnect coupling applications. Built from polysulfone (PSU) with an EPDM O-ring seal, this shutoff-style plug handles a maximum working pressure of 125 psi and operates across a temperature range of -40 to 280 degrees F. The 3/4 NPT male thread provides a secure, leak-resistant connection in line installations. At 0.15 pounds, it is a compact fitting suited for plumbing, industrial fluid transfer, and process cooling systems where a reliable plug with shutoff function is required.

This plug is intended for inline threaded installations using a 3/4 NPT male connection with a 3/8 inch nominal flow path. The polysulfone construction offers chemical resistance and durability in both low and elevated temperature service environments. It is appropriate for residential and light commercial fluid systems, process equipment, and cooling loops where a threaded male plug with shutoff capability is specified. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers of this type of fitting.

Key Features

• Shutoff valve type prevents flow when plug is disconnected
• Polysulfone (PSU) body provides chemical resistance and structural integrity
• EPDM O-ring seal suitable for a wide range of fluid media
• 3/4 NPT male thread for standard inline threaded installations
• Wide operating range: -40 to 280 degrees F
• Rated to 125 psi maximum working pressure

Compatibility

Designed as an OEM-style inline threaded male plug for fluid coupling systems requiring a 3/4 NPT male connection with 3/8 inch nominal flow. Consult the coupling series documentation to confirm mating body compatibility before installation.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes such as the IPC. Shut off and depressurize the fluid system completely before removing or installing any coupling plug. Apply thread sealant appropriate for the fluid media and operating temperature range to the NPT threads. Do not exceed the rated working pressure of 125 psi in service.
