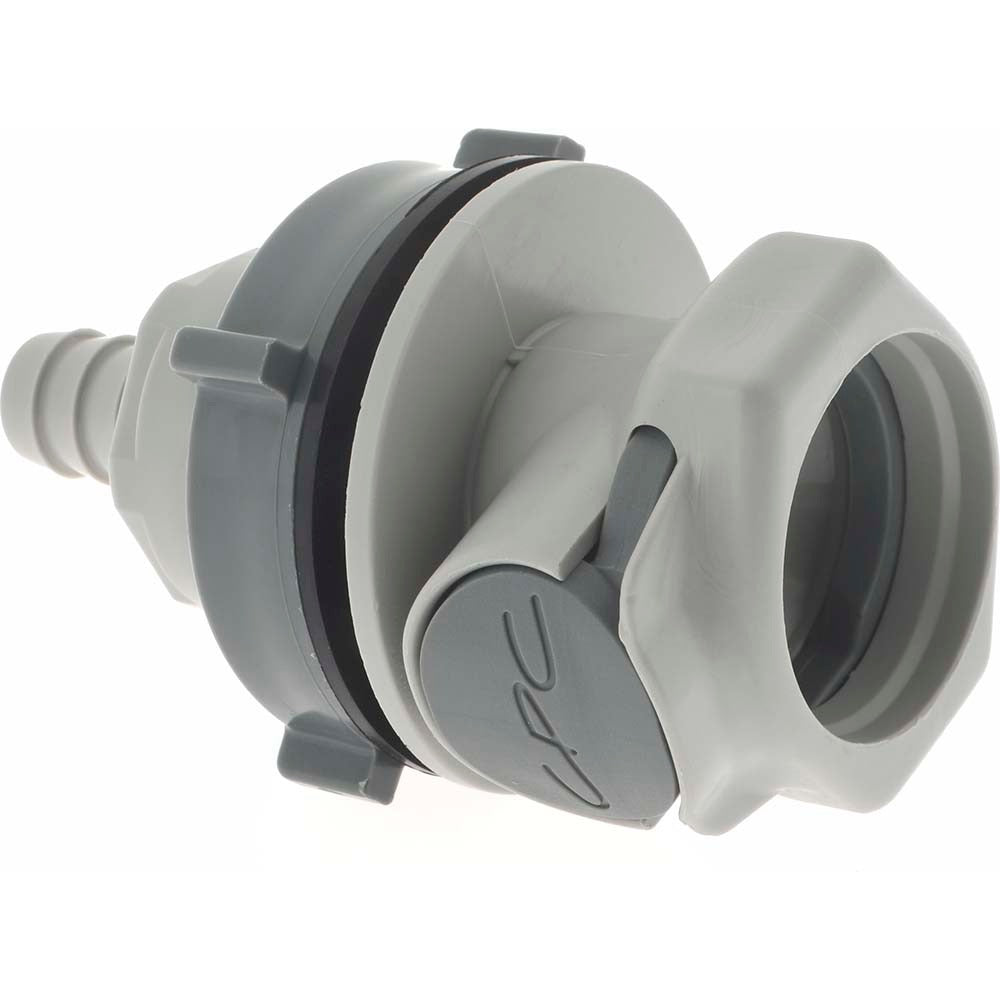

Cpc Colder Products HFCD16612NA Panel Mount Hose Barb Coupling

Product Description

The CPC COLDER PRODUCTS HFCD16612NA is a panel mount hose barb female socket coupling designed for fluid handling systems that require a secure, leak-resistant connection at a panel or bulkhead. Built from polypropylene with an EPDM O-ring, this fitting handles a nominal flow size of 3/8 inches and accepts hose with a 3/8 inch inside diameter. It is rated for a maximum working pressure of 60 psi and operates across a temperature range of 32 to 230 degrees F. The shutoff valve type stops flow automatically when disconnected, minimizing fluid loss during service. Plumbers, industrial maintenance technicians, and fluid system installers work with this type of fitting on process and transfer lines.

This coupling is suited for panel or bulkhead mounting applications where a female socket quick-disconnect is needed on the stationary side of a fluid circuit. Typical installations include cooling lines, chemical transfer systems, and process fluid circuits in both light industrial and commercial settings. The hose barb end accepts standard flexible tubing with a 3/8 inch inside diameter, making field assembly straightforward without specialized tooling. The polypropylene body offers resistance to many common process fluids and cleaning agents encountered in these environments.

Key Features

• Panel mount design for bulkhead or fixture installation on stationary fluid system panels
• Shutoff valve type stops flow automatically upon disconnection to reduce spills
• Polypropylene body provides chemical resistance for a wide range of process fluids
• EPDM O-ring sealing material compatible with water and many aqueous solutions
• Rated to 60 psi maximum working pressure for reliable service on pressurized lines
• Wide operating temperature range of 32 to 230 degrees F suits diverse application environments

Compatibility

Designed as an OEM-style panel mount quick-disconnect fitting for fluid handling systems using 3/8 inch inside diameter flexible hose and requiring a female socket shutoff at the panel connection point.

Installation Notes

Installation is typically performed by a plumber or fluid systems technician. Depressurize and drain the fluid circuit completely before removing or installing any quick-disconnect fitting. Secure the panel mount body through the bulkhead with appropriate hardware to prevent rotation during hose connection and disconnection. Verify that hose barb connections are clamped with a suitable clamp to maintain a leak-free seal at the rated working pressure.
