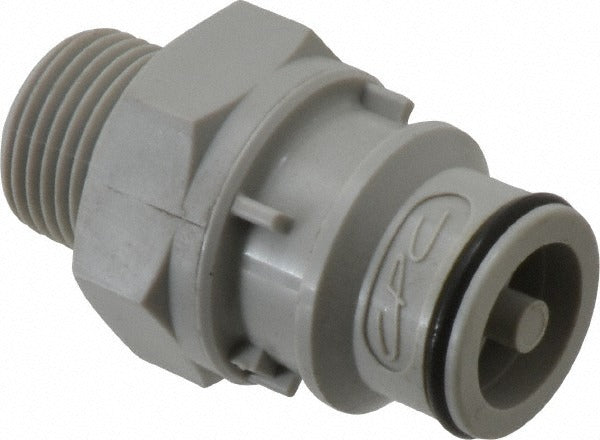

Cpc Colder Products HFC24612 Inline Threaded Male Plug

Product Description

The CPC COLDER PRODUCTS HFC24612 is an inline threaded male plug designed for fluid handling systems that require a secure, leak-free disconnect point. Built from polypropylene with an EPDM o-ring, this plug handles a maximum working pressure of 60 psi and operates across a temperature range of 32 to 230 degrees F. The 3/8 NPT male thread provides a straightforward connection to standard threaded fittings. It is sized for 3/8-inch nominal flow applications. Plumbers, fluid system technicians, and industrial maintenance professionals install this type of plug to cap or terminate lines in liquid distribution, chemical handling, and process cooling systems.

This plug is suited for inline installations where a threaded male plug is needed to seal off a fluid line or serve as the male half of a quick-disconnect assembly. The polypropylene body offers resistance to a wide range of fluids including water and many mild chemicals, making it appropriate for both residential and light commercial plumbing, irrigation, and process fluid applications. The EPDM o-ring provides reliable sealing performance across the rated temperature range.

Key Features

• 3/8 NPT male thread for compatibility with standard NPT fittings
• Polypropylene body provides corrosion resistance and lightweight construction
• EPDM o-ring delivers reliable sealing across the full operating temperature range
• Rated to 60 psi maximum working pressure
• Operating temperature range of 32 to 230 degrees F suits a wide variety of fluid system environments

Compatibility

Designed as an OEM-style inline threaded male plug for fluid handling and plumbing systems using 3/8 NPT threaded connections.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician following applicable IPC and local plumbing codes. Shut off and depressurize the fluid line completely before removing any existing fittings or installing this plug. Apply thread sealant appropriate for polypropylene fittings and the fluid media in the system. Do not exceed the rated working pressure of 60 psi or the maximum temperature of 230 degrees F.
