Cpc Colder Products FFC24835 Inline Threaded Male Plug

Product Description

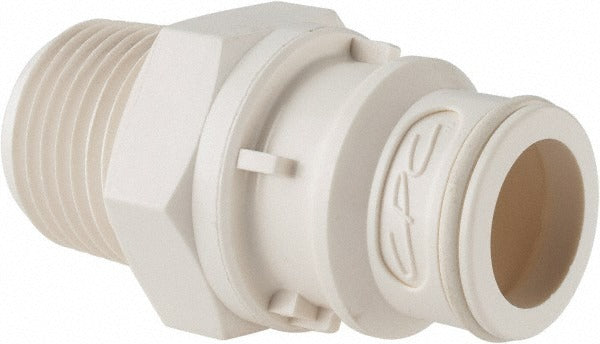

The CPC COLDER PRODUCTS FFC24835 is an inline threaded male plug designed for fluid handling systems that require a secure, leak-resistant shutoff at a male NPT connection point. Built from polysulfone (PSU) with an EPDM o-ring seal, this plug handles a maximum working pressure of 125 psi and operates across a wide temperature range of -40 to 280 degrees F. The 1/2 NPT male thread provides a standard, reliable connection. Plumbers, industrial maintenance technicians, and fluid system installers use this plug to cap or terminate inline fluid lines in both stationary and recirculating system applications.

This plug is suited for inline fluid line termination in industrial, commercial, and light process piping applications. The polysulfone body offers good chemical resistance and structural integrity across demanding temperature swings, making it appropriate for coolant lines, process fluid systems, and similar installations where a dependable threaded male plug is required. The EPDM o-ring provides a reliable seal compatible with water, steam, and many common process fluids.

Key Features

• 1/2 NPT male thread for standard inline connection
• Polysulfone (PSU) body for chemical and thermal resistance
• EPDM o-ring seal for reliable leak-resistant shutoff
• Maximum working pressure of 125 psi
• Wide operating temperature range: -40 to 280 degrees F
• Compact, lightweight design at 0.15 pounds

Compatibility

Designed as an OEM-style inline threaded male plug for fluid handling and process piping systems using 1/2 NPT male threaded connections.

Installation Notes

Installation is performed by plumbers or industrial fluid system technicians familiar with NPT threaded fittings. Depressurize and drain the fluid line completely before installing or removing this plug. Apply an appropriate thread sealant or PTFE tape to NPT threads per standard trade practice and applicable IPC guidelines. Do not exceed the rated 125 psi working pressure or the temperature limits of the fitting.
