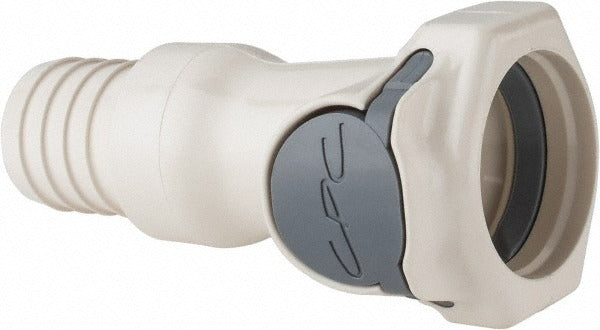

Cpc Colder Products FFC171235 Inline Hose Barb Coupling

Product Description

The CPC COLDER PRODUCTS FFC171235 is a female inline hose barb to female socket coupling designed for fluid handling and transfer applications. Built from polysulfone with an EPDM o-ring seal, this fitting handles a maximum working pressure of 125 psi and an operating temperature range of -40 to 280 degrees F. The 1/2 inch nominal flow size and 3/4 inch inside diameter make it suitable for medium-flow liquid lines. Plumbers, HVAC technicians, and industrial fluid system installers use this type of coupling where a secure, leak-resistant inline connection is required on hose barb assemblies.

This coupling is used in residential and commercial fluid transfer systems where polysulfone construction is specified for chemical compatibility or elevated-temperature service. The inline female socket configuration allows direct connection to compatible male inserts or barbed hose assemblies. Typical applications include cooling circuits, process fluid lines, and equipment plumbing where quick-connect or semi-permanent barb fittings are part of the system design. The wide temperature range makes it appropriate for both chilled-water and hot-fluid service.

Key Features

• Polysulfone body provides chemical resistance and strength across a wide temperature range
• EPDM o-ring seal rated for -40 to 280 degrees F service
• Maximum working pressure of 125 psi
• 1/2 inch nominal flow with 3/4 inch inside diameter hose barb inlet
• Female inline socket design for direct mating with compatible male inserts
• Lightweight at 0.15 pounds for easy handling in tight installations

Compatibility

Designed as an OEM-style inline hose barb female socket coupling for fluid transfer systems requiring a 1/2 inch nominal flow, 3/4 inch ID barb connection with polysulfone construction and EPDM sealing.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician. Depressurize and drain the fluid system completely before removing or replacing any inline fitting. Confirm that hose barb sizing and material compatibility are verified against system fluid type and operating conditions before assembly. Follow applicable plumbing codes and manufacturer torque guidelines for hose clamp and barb retention.
