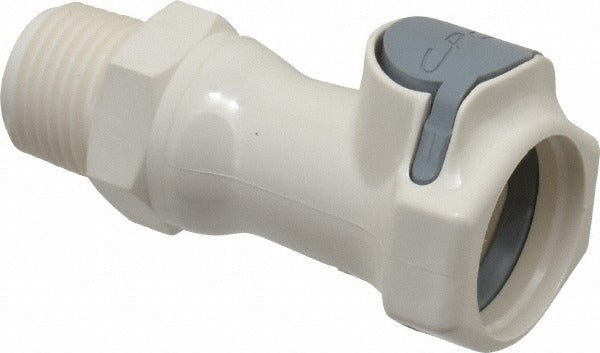

Cpc Colder Products FFC10835 Inline Threaded Male Socket

Product Description

The CPC COLDER PRODUCTS FFC10835 is an inline threaded male socket coupling designed for fluid handling systems that require a reliable, leak-free connection. Built from polysulfone (PSU) with an EPDM O-ring, this fitting handles a maximum working pressure of 125 psi and operates across a wide temperature range of -40 to 280 degrees F. The 1/2 NPT male thread connection allows straightforward integration into existing plumbing lines. Licensed plumbers, industrial maintenance technicians, and fluid system installers commonly work with this type of fitting in process piping and coolant circuit applications.

This inline threaded male socket is suited for residential, commercial, and light industrial fluid distribution systems. Its polysulfone construction offers resistance to a broad range of fluids and temperatures, making it appropriate for coolant lines, water distribution manifolds, and similar inline connection points. The EPDM O-ring provides a dependable seal across the rated temperature range. The 1/2-inch nominal flow size fits standard half-inch line configurations without reducers or adapters.

Key Features

• Polysulfone (PSU) body construction for chemical and temperature resistance
• EPDM O-ring seal rated for -40 to 280 degrees F operating range
• Maximum working pressure of 125 psi
• 1/2 NPT male thread for direct integration into standard pipe systems
• 1/2-inch nominal flow size minimizes restriction in the line
• Inline configuration simplifies installation in existing plumbing runs

Compatibility

Designed as an OEM-style replacement or new-installation inline threaded male socket fitting for fluid handling systems using 1/2 NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified fluid systems technician familiar with NPT threaded fittings. Depressurize and drain the system fully before removing any existing fitting or installing this socket. Apply appropriate thread sealant or PTFE tape to the NPT threads per standard practice and applicable IPC guidelines. Do not exceed the rated working pressure of 125 psi or operate outside the stated temperature range.
