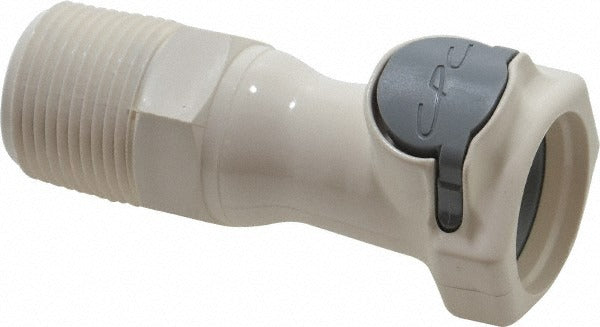

Cpc Colder Products FFC101235 Inline Male Socket 3/4 Npt

Product Description

The CPC COLDER PRODUCTS FFC101235 is a polysulfone inline threaded male socket designed for fluid handling applications requiring a secure, leak-resistant connection. Built with a 3/4 NPT male thread and a 1/2 inch nominal flow size, this coupling handles working pressures up to 125 psi and operates across a wide temperature range of -40 to 280 degrees F. The polysulfone body offers strong resistance to chemicals and heat, making it a reliable choice for demanding process, industrial, and laboratory fluid systems. An EPDM O-ring provides the primary seal. Licensed plumbers, fluid system technicians, and industrial maintenance professionals typically install this type of fitting.

This inline male socket is suited for residential, commercial, and light industrial fluid systems where a threaded connection point is required in-line along a fluid circuit. The 3/4 NPT thread size makes it compatible with standard pipe and hose assemblies commonly found in cooling, chemical transfer, and process fluid systems. It is sold as a single unit and is appropriate for use wherever a polysulfone quick-disconnect or threaded coupling fitting is specified.

Key Features

• Polysulfone (PSU) body provides excellent chemical resistance and high-temperature durability
• EPDM O-ring seal maintains leak-free performance across the rated temperature range
• Rated to 125 psi maximum working pressure
• Wide operating temperature range: -40 to 280 degrees F
• 3/4 NPT male thread for compatibility with standard pipe fittings
• 1/2 inch nominal flow size for consistent, unobstructed fluid passage

Compatibility

Designed as an OEM-style inline threaded male socket fitting for fluid systems using 3/4 NPT connections with a 1/2 inch nominal flow size. Consult system documentation to confirm thread size and flow requirements before installation.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician familiar with NPT threaded fittings. Depressurize and drain the fluid system completely before removing or installing any coupling. Apply appropriate thread sealant or PTFE tape to NPT threads per standard practice and applicable plumbing codes. Do not exceed the rated maximum working pressure of 125 psi or the maximum temperature of 280 degrees F.
