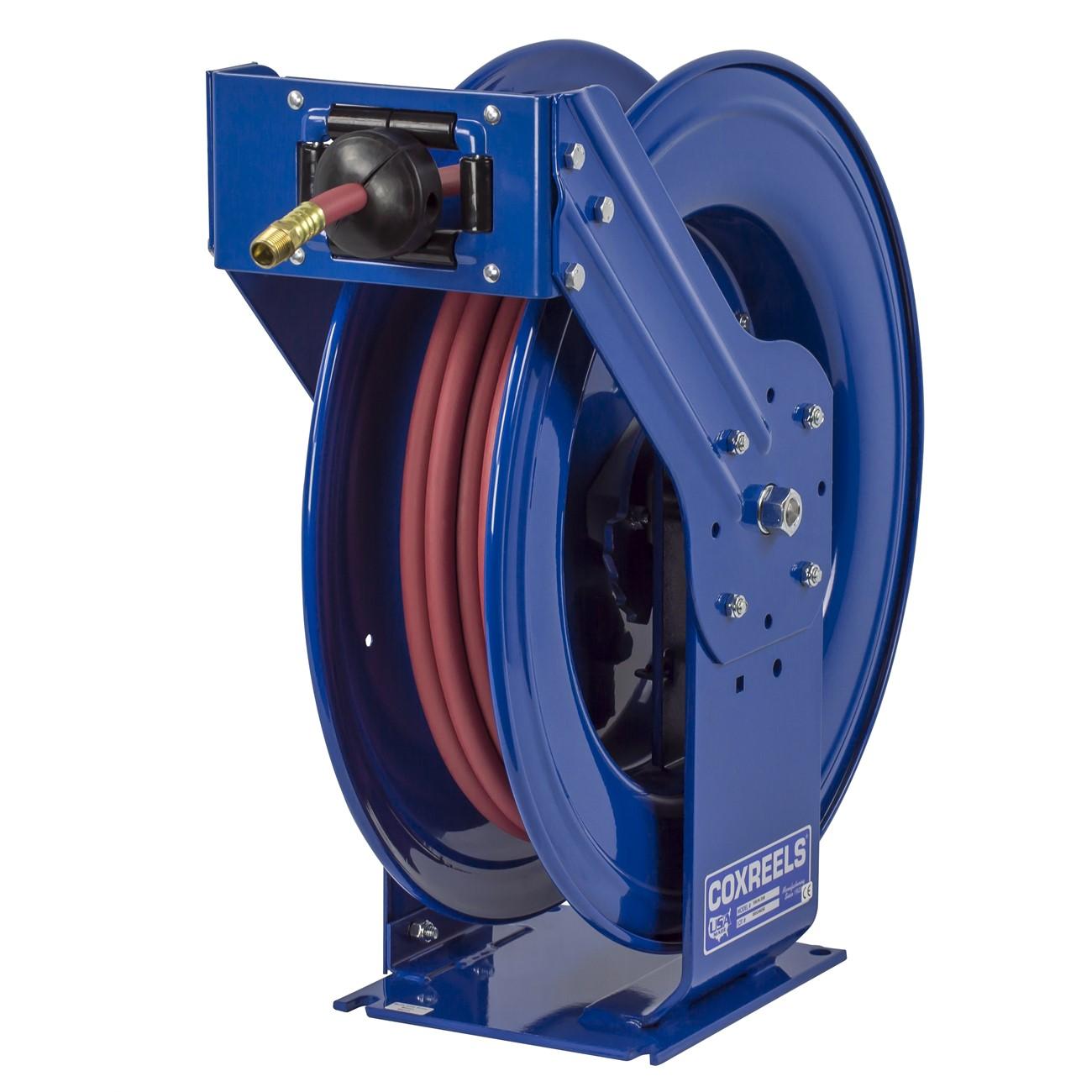

Coxreels TSH-N-3100 Spring Driven Hose Reel 100 Ft

Product Description

The COXREELS TSH-N-3100 is a T Series spring driven hose reel built for truck mount and off-road service applications. It accepts 3/8 inch ID hose up to 100 feet in length and features a heavy-duty steel construction designed to hold up in abusive field environments. A dual pedestal chassis with the Coxreels Super Hub provides triple axle support, reducing vibration and reinforcing structural integrity during transport and operation. Licensed HVAC, plumbing, and industrial service technicians working from service vehicles will find this reel suited for high-demand daily use. At 85 pounds, the unit is a substantial, permanent-mount installation.

The TSH-N-3100 is designed for truck-mounted and off-road service vehicles where a spring driven retraction system is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of service truck setups. It is well suited for contractors and field technicians running air, water, or compatible fluid lines to job sites from a work vehicle. The spring driven motor handles automatic hose retraction without requiring a motor or external power source.

Key Features

• Spring driven cartridge motor is enclosed and fully lubricated, removable for field maintenance without taking the reel off its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service with the reel in place
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Dual pedestal design with solid one-piece steel base and support post, no weld joints, with Super Hub triple axle support
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chipping and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as a truck-mount spring driven hose reel for 3/8 inch ID hose up to 100 feet in length; consult COXREELS T Series fitment documentation to confirm compatibility with specific hose assemblies and mounting configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid delivery systems. Depressurize and disconnect the hose from the supply source before mounting or servicing the reel. Secure the steel base to the mounting surface using fasteners rated for the combined weight of the reel and hose. Verify that the guide arm position and swivel inlet orientation are confirmed before final tightening.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 85 pounds
• Finish: CPC powder coat
• UPC: 674255720794

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-3100
