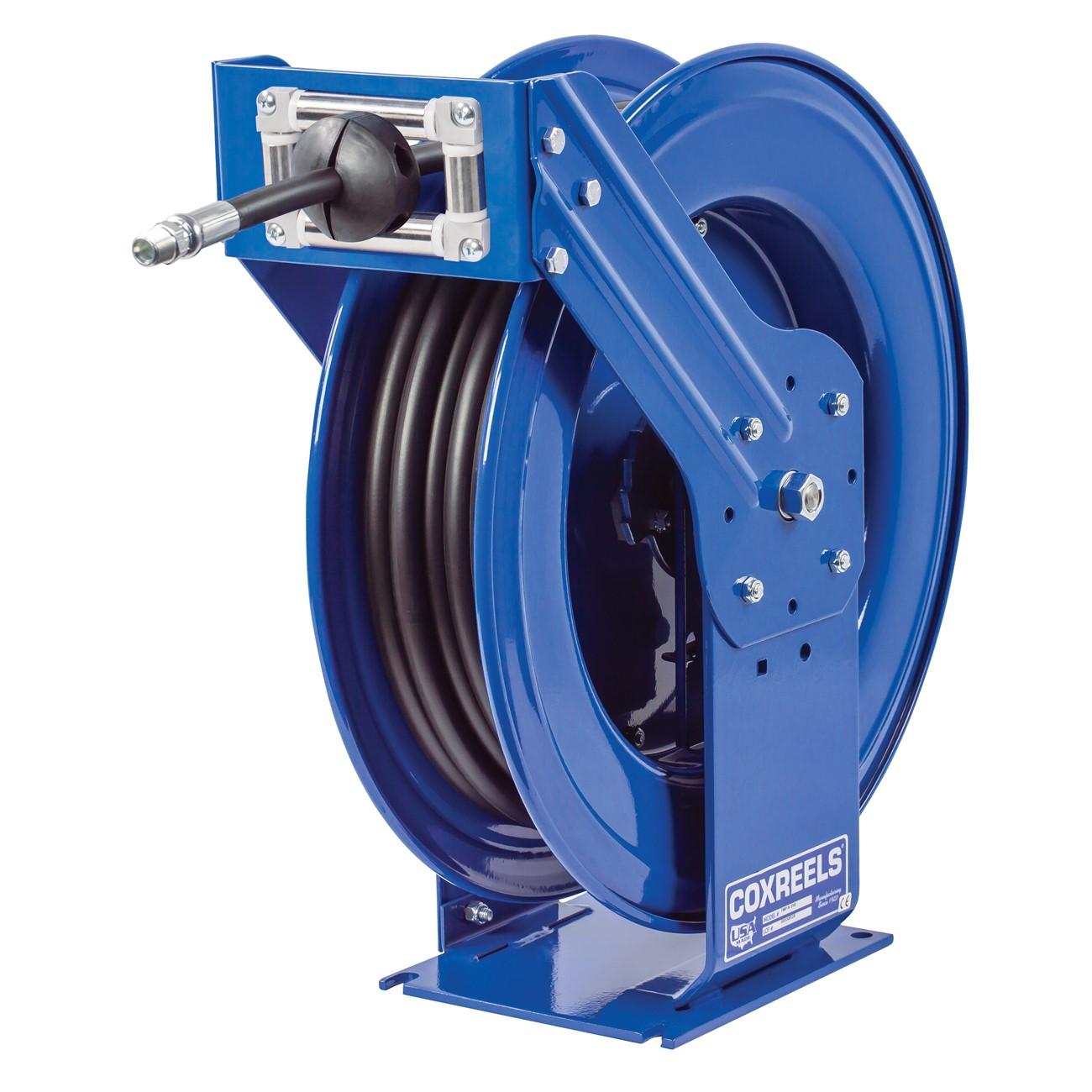

Coxreels TMP-N-650 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TMP-N-650 is a spring-driven, truck-mount hose reel built for heavy-duty field service in off-road and high-demand environments. Part of the COXREELS T Series, this reel accepts 1 inch ID hose up to 50 feet in length with a 1 3/8 inch OD. The extra-large chassis features dual pedestal-style arms and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under sustained abuse. The enclosed cartridge-style spring motor is self-contained and removable for field maintenance. A CPC powder coat finish resists chipping and rust. Licensed technicians and fleet service crews rely on this reel for reliable hose management on service vehicles and mobile equipment.

The TMP-N-650 is engineered for mobile service applications where the reel is exposed to constant movement, vibration, and harsh operating conditions. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across different truck bed and service body configurations. The solid one-piece steel base with no-weld construction and support post provides a stable foundation for demanding fleet and off-road use. This reel suits contractors, utility crews, and mobile service technicians who need consistent hose retraction under rough-duty conditions.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge motor for easy removal and maintenance without dismounting the reel
• Super Hub triple axle support reduces vibration and strengthens chassis integrity for off-road service
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as a truck-mount replacement or new-install spring-driven hose reel for mobile service vehicles and off-road equipment requiring 1 inch ID hose delivery up to 50 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with mobile equipment hose systems and vehicle upfitting practices. Depressurize and drain all fluid from the hose and supply line before mounting or servicing the reel. Secure the one-piece steel base to a structurally sound mounting surface using hardware rated for the reel weight and expected vehicle loads. Verify NPT swivel connections are properly sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1 3/8 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Base Material: Steel (one-piece, no-weld construction)
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 116 pounds
• UPC: 674255738171

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMP-N-650
