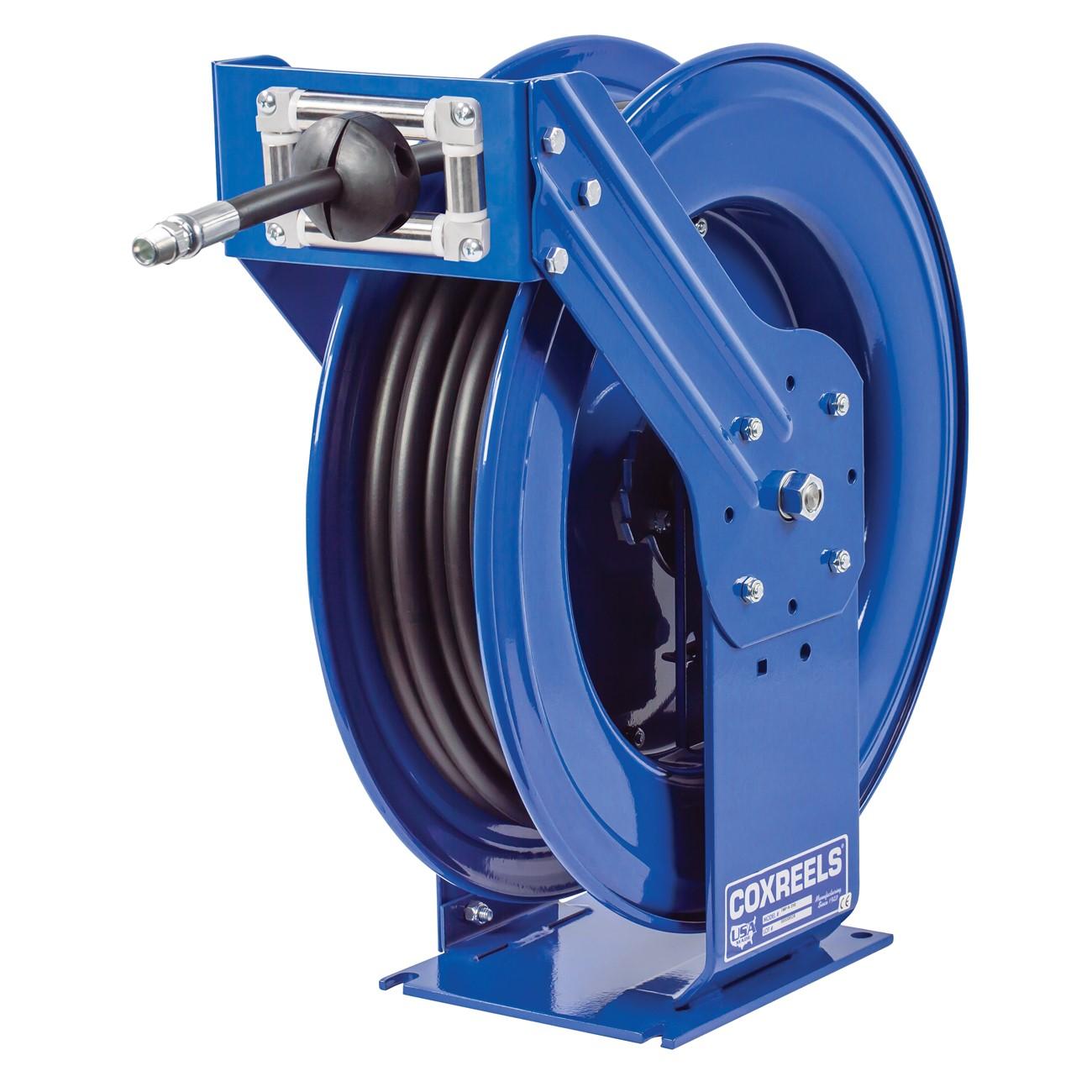

Coxreels TMP-N-550 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TMP-N-550 is a spring-driven, truck-mount hose reel built for heavy-duty field service and off-road use. Part of the COXREELS T Series, it accepts 3/4 inch ID hose up to 50 feet in length and features a solid steel base with a dual pedestal-style arm design. The extra-large chassis incorporates the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under continuous mechanical stress. The enclosed cartridge-style rewind motor and CNC-spun ribbed discs make this unit suitable for technicians and service crews operating in demanding environments where reliability is non-negotiable.

The TMP-N-550 is designed for vehicle-mounted service applications, including utility trucks, fleet service vehicles, and mobile maintenance rigs. Its multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of service body layouts. The spring-driven retraction mechanism keeps hose management fast and hands-free during active service calls. This reel is a common choice for plumbing, HVAC, and general industrial service crews running water, air, or compatible fluid lines from a vehicle-mounted setup.

Key Features

• Spring-driven retraction with enclosed cartridge-style motor for low-maintenance operation
• Dual pedestal steel base with one-piece construction and no-weld support post for maximum stability
• Super Hub triple axle support reduces vibration and increases structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation without removing the reel from its mount
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style truck-mount replacement or new-install spring-driven hose reel for 3/4 inch ID hose lines in mobile service vehicle applications.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician familiar with vehicle service body outfitting. Secure all mounting hardware to a structurally sound surface rated for the combined weight of the reel and a full hose load. Shut off the fluid supply line completely before connecting or disconnecting hose at the swivel. Follow applicable plumbing and fluid handling codes for the specific media being routed through the reel.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1 1/16 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 94 pounds
• UPC: 674255720695

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TMP-N-550
