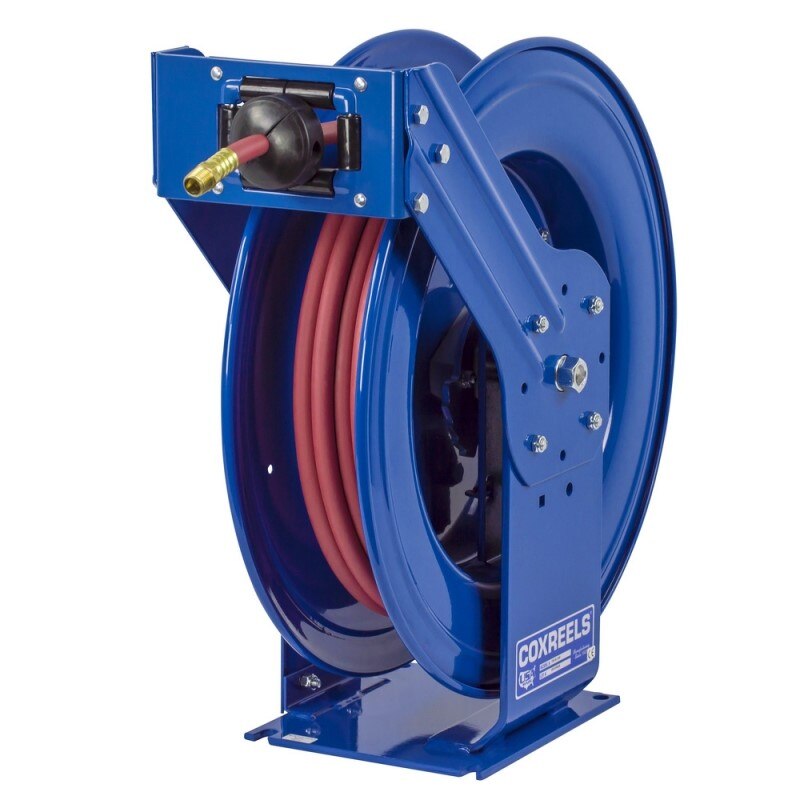

Coxreels THPL-N-375 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS THPL-N-375 is a spring-driven, truck-mount hose reel built for heavy-duty field service and off-road applications. Part of the COXREELS T Series, it accepts 3/8-inch ID hose with an 11/16-inch OD and accommodates up to 75 feet of hose. The reel is constructed with a steel base and features the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under demanding conditions. Weighing 80 pounds and measuring 25 inches long by 13 inches wide by 27 inches tall, this is a full-size unit intended for professional installation on service trucks, utility vehicles, and similar mobile platforms.

The THPL-N-375 is designed for trade professionals who need reliable hose retrieval in high-cycle, off-road, or vibration-prone environments. Typical applications include mobile lubrication service, fleet maintenance, and field equipment servicing where a spring-retract reel mounted to a truck bed or service body is required. The dual pedestal chassis and multi-position guide arm make it adaptable to a range of mounting orientations including wall, floor, ceiling, and vehicle positions.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy removal and maintenance
• Zinc-plated machined steel 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with dual pedestal design and no-weld support post for maximum stability
• Super Hub triple axle support reduces vibration and strengthens structural integrity for off-road use
• CPC powder coat finish resists chipping and rust for long-term durability in outdoor and mobile environments
• Permanently lubricated precision bearings for extended service life

Compatibility

Designed as an OEM-style replacement and direct-fit hose reel for 3/8-inch ID hose assemblies up to 75 feet in spring-driven truck-mount configurations.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician. Power down or depressurize all connected fluid systems before mounting or servicing the reel. Secure the steel base to the vehicle or mounting surface using hardware rated for the combined weight of the reel and hose assembly. Verify that all NPT swivel connections are properly sealed and that the guide arm is locked into the correct position for the intended mounting orientation before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 80 pounds
• UPC: 674255720299

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: THPL-N-375
