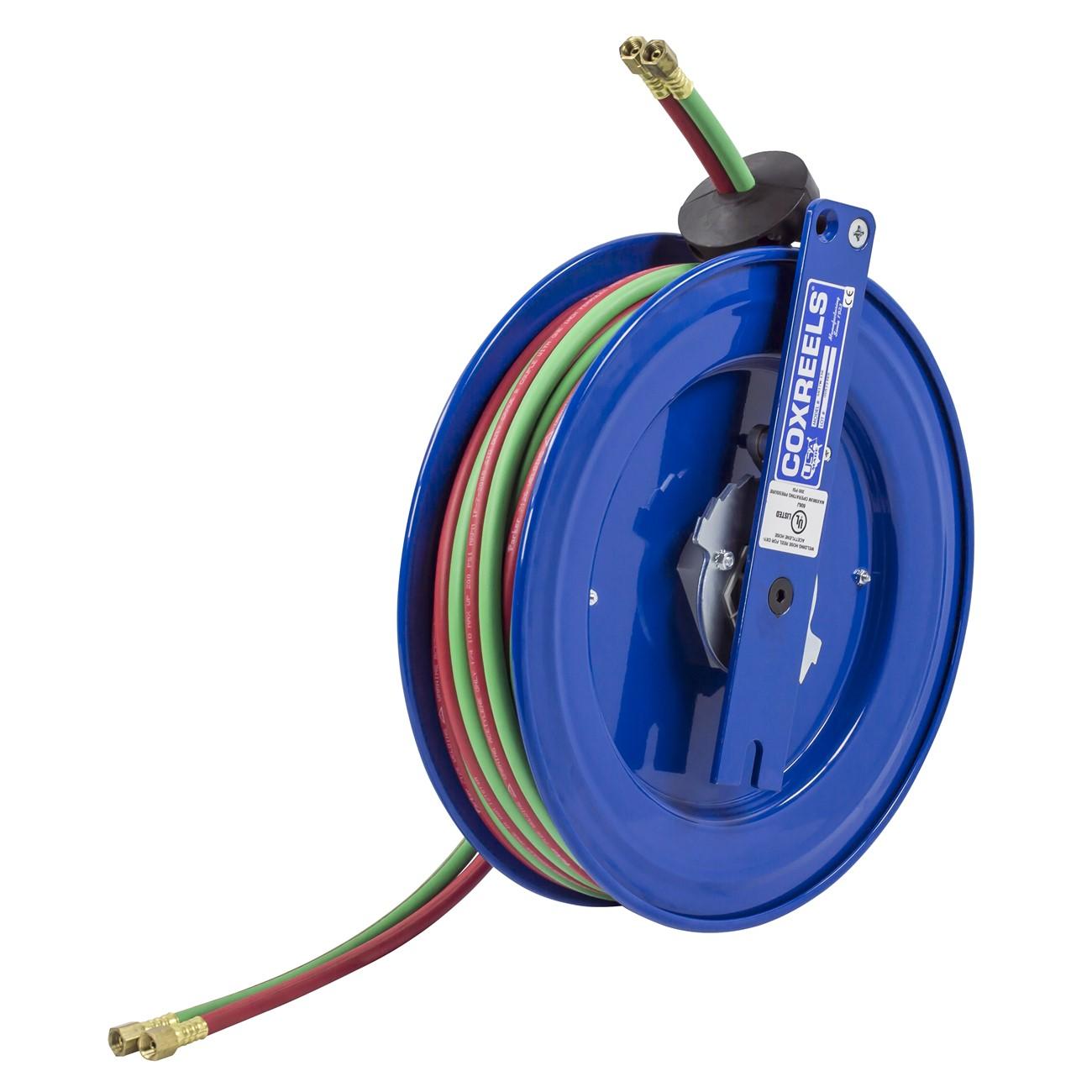

Coxreels SR19WT-175 Welding Gas Hose Reel Spring Driven

Product Description

The COXREELS SR19WT-175 is a spring-driven welding gas hose reel designed for side-mount installation in cabinets, enclosed spaces, and flat vertical surfaces. Part of the COXREELS S Series, it accepts T-grade welding hose at 1/4-inch ID up to 75 feet in length. The reel uses a cartridge-style motor and features CNC robotically spun, ribbed steel discs with rolled edges for durability and hose protection. A simple two-bolt mounting pattern allows the unit to be installed or removed quickly, making it practical for multi-workstation and mobile service environments. Licensed welding technicians and service professionals are the primary installers.

The SR19WT-175 is suited for service units, tool benches, tool boxes, vehicle lift systems, machine tools, and service vehicles. The 360-degree hose direction lets operators swing the hose in any direction without repositioning the reel. Side-mount orientation targets vertical walls, beams, and cabinet interiors where space is limited. Applications include oxy-acetylene and T-grade gas welding hose service in both shop and mobile settings.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side, no need to dismount the reel
• Cartridge-style spring motor is lubricated, enclosed, and removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Two-bolt side-mount pattern supports quick installation, detachment, and repositioning across multiple workstations
• Hose control bar prevents hose from slipping off the disc during retraction
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for use with T-grade welding gas hose at 1/4-inch ID. Compatible with oxy-acetylene and T-grade gas welding hose applications per the COXREELS S Series product family. Consult the COXREELS S Series documentation for additional hose type options including air, water, oil, and grease configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable codes. Shut off all gas supply and fully depressurize the hose before mounting or servicing the reel. Secure the unit to a structurally sound vertical surface using the two-bolt pattern and hardware rated for the application load. Inspect swivel seals and hose connections for leaks with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 75 feet
• Drive Type: Spring driven
• Swivel: External 90-degree full-flow dual-ported brass with Viton seals
• Disc Material: Steel (CNC spun, ribbed with rolled edges)
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Mount Style: Side mount, 2-bolt pattern
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 53 pounds
• UPC: 674255736436

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR19WT-175
