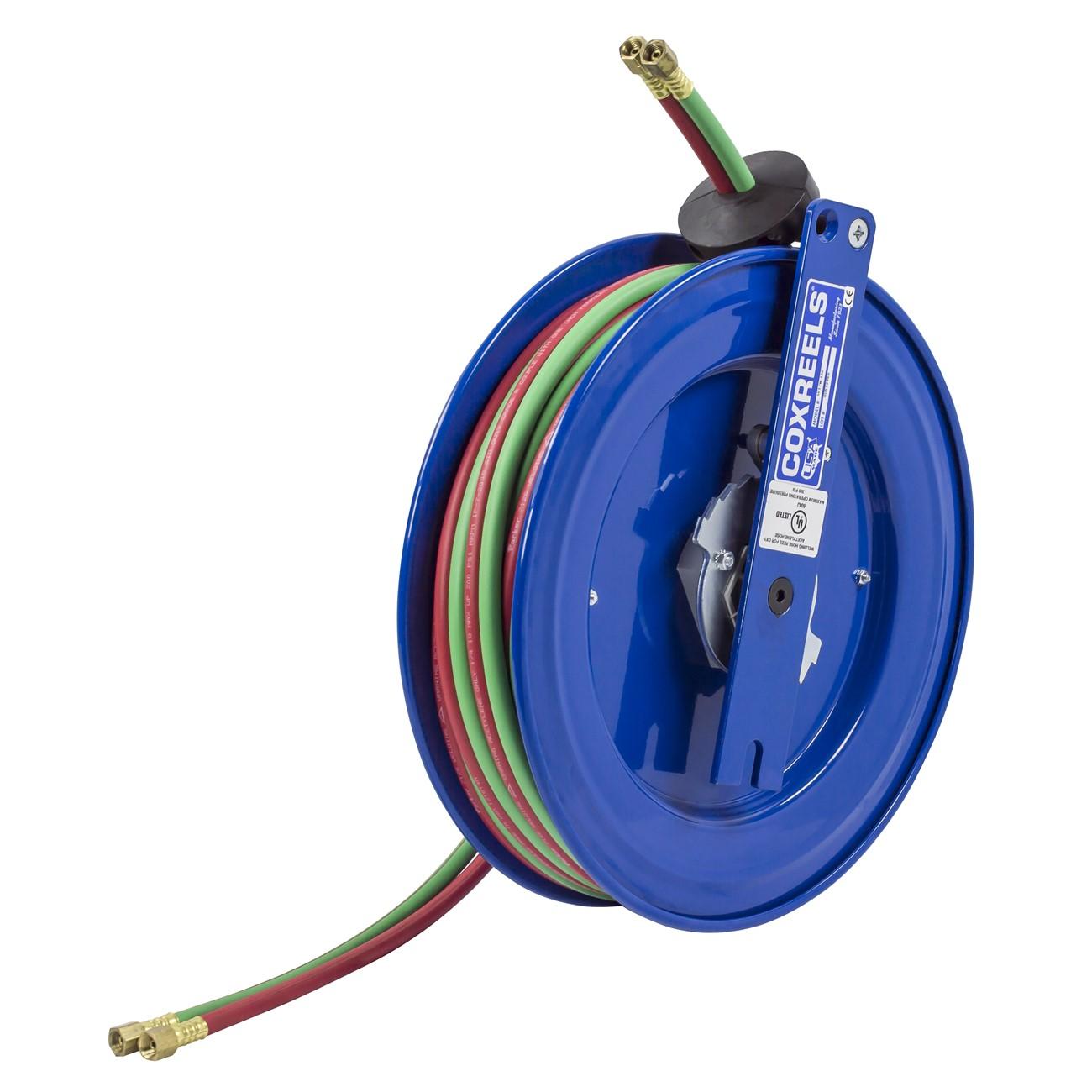

Coxreels SR19W-175 Welding Gas Hose Reel Spring Driven

Product Description

The COXREELS SR19W-175 is a spring-driven, side-mount hose reel built for welding gas service, designed for use with oxygen-acetylene hose in demanding shop and field environments. Constructed from heavy-duty steel with a CPC powder coat finish that resists chips and rust, this reel accepts a 1/4 inch ID hose up to 75 feet in length. The enclosed, lubricated cartridge motor retracts hose smoothly and is removable for field maintenance without special tools. An external 90-degree, full-flow dual-ported brass swivel with VITON seals allows both supply and outlet connections from the same side of the reel, so the unit never has to be pulled from its mount to service connections. Permanently lubricated precision bearings and CNC robotically spun ribbed discs with rolled edges deliver long service life under continuous use. This reel is intended for installation by qualified welding equipment technicians or industrial maintenance professionals.

The SR19W-175 is engineered for side-mount applications where space is constrained. The two-bolt mounting pattern supports fast attachment and detachment, making it well-suited for multi-workstation setups where a single reel may rotate between stations. Typical install locations include service vehicles, tool benches, tool boxes, vertical walls, beams, vehicle lift systems, machine tools, cabinet enclosures, and any flat vertical surface. The 360-degree hose direction lets the operator work in any orientation the job requires. An adjustable solid rubber hose stop and a hose control bar prevent the hose from slipping off the disc during operation.

Key Features

• External 90-degree full-flow dual-ported brass swivel with VITON seals for welding gas service — both connections access from the same side
• Cartridge-style motor is lubricated, enclosed, and removable for convenient maintenance without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports fast installation, detachment, and repositioning across multiple workstations
• Hose control bar retains hose on the disc during extension and retraction
• CPC powder coat finish resists chips, rust, and corrosion for long service life in industrial environments

Compatibility

Designed for use with oxygen-acetylene welding hose in the COXREELS S Series spring-driven side-mount reel platform, suitable for cabinet mount, enclosed space, and flat vertical surface installations as described by the manufacturer.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas systems and applicable safety codes. Shut off and bleed all gas supply lines before mounting or servicing the reel. Secure the unit to a structurally sound surface using the two-bolt pattern, and verify all swivel connections are leak-free before returning the system to service. Do not exceed the hose or pressure ratings specified for the connected welding gas application.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Maximum Hose Length: 75 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Type: External 90-degree dual-ported brass with VITON seals
• Disc Construction: CNC spun ribbed steel with rolled edges
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 53 pounds
• UPC: 674255735408

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR19W-175
