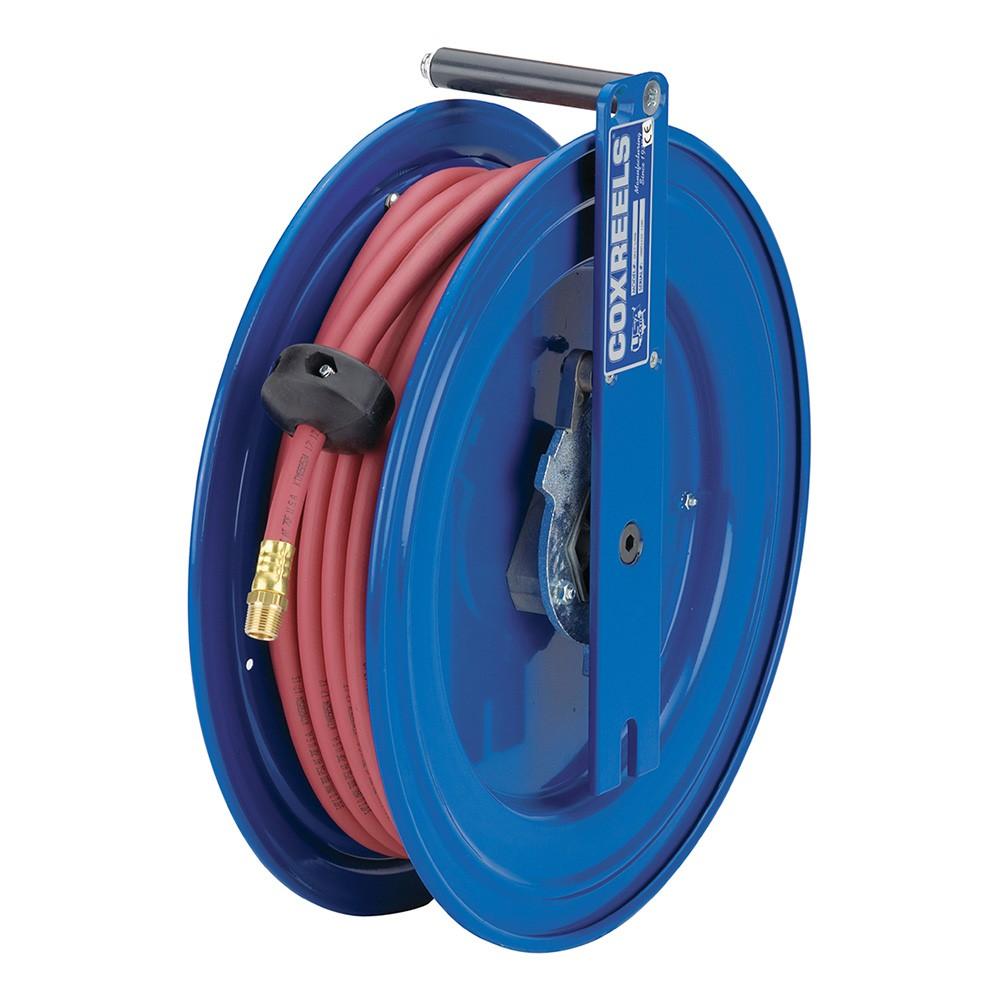

Coxreels SR19L-M450 Spring Driven Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS SR19L-M450 is a spring-driven, side-mount hose reel from the S Series, designed for compact cabinet and enclosed-space installations. It features a two-bolt mounting pattern that allows fast attachment and detachment across multiple workstations. The reel accepts 1/2 inch ID hose up to 50 feet in length and is constructed with heavy-duty CNC robotically spun steel discs. A machined solid brass 90-degree full-flow NPT swivel enables 360-degree hose direction, so technicians can feed hose in any direction the job requires. Suitable for air, water, oil, and grease service, this reel is a practical fit for fixed or mobile service environments.

The SR19L-M450 is built for trade applications where space is limited and quick reel access is critical. Typical installations include service unit cabinets, tool benches, toolboxes, vertical walls, beams, vehicle lift systems, machine tool stations, and service vehicles. The side-mount design keeps the reel profile low and out of the way. Licensed mechanics, fleet service technicians, and industrial maintenance professionals are the primary installers. The spring-driven retraction mechanism eliminates the need for manual rewinding, reducing fatigue in high-cycle environments.

Key Features

• Spring-driven retraction with 360-degree hose direction for flexible positioning
• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is removable for safe maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports temporary or permanent installation on flat vertical surfaces and enclosed spaces
• Hose control bar prevents hose from slipping off the disc
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed as an OEM-style S Series spring-driven hose reel suitable for air, water, oil, and grease hose service in cabinet-mount, tool bench, service vehicle, and flat vertical surface applications.

Installation Notes

Installation is typically performed by licensed mechanics or industrial maintenance technicians. Depressurize the hose line and relieve spring tension before mounting or performing any service on the reel. Use the two-bolt mounting pattern on a solid, flat vertical surface capable of supporting the reel weight plus hose load. Follow applicable OSHA and facility safety requirements when working on pressurized fluid or air systems.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length Capacity: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 36 pounds
• Disc Material: Steel
• Swivel Material: Solid Brass
• Drive Type: Spring Driven
• Mount Style: Side Mount
• Finish: CPC Powder Coat
• UPC: 674255735644

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR19L-M450
