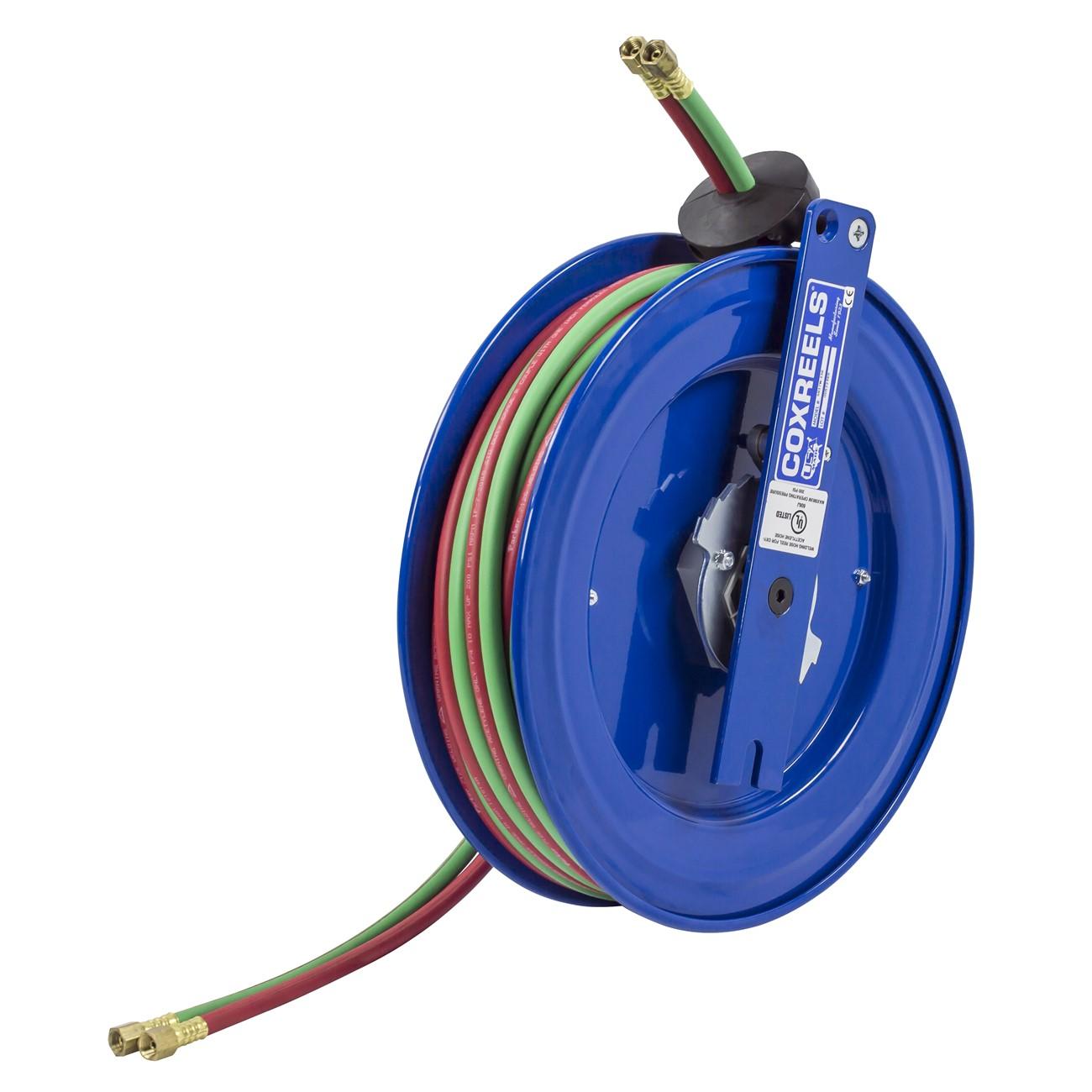

Coxreels SR17W-150 Welding Gas Hose Reel Spring Driven

Product Description

The COXREELS SR17W-150 is a spring-driven, side-mount hose reel from the S Series line, designed for welding gas applications including oxygen-acetylene service. Built with heavy-duty CNC robotically spun and ribbed steel discs with rolled edges, this reel handles the demands of professional welding environments. It features an external 90-degree full-flow dual-ported brass swivel with Viton seals, allowing both hose connections to be accessed from the same side of the reel without removing it from its mount. The enclosed, lubricated cartridge-style motor allows for quick removal during maintenance. At 38 pounds, the unit measures 17.5 inches long, 8.5 inches wide, and 19.25 inches tall. Licensed welding professionals and industrial service technicians are the primary installers.

The SR17W-150 is suited for professional and industrial environments where welding gas hose management is required in tight or enclosed spaces. Its compact side-mount design supports installation on vertical flat surfaces, inside cabinets, on tool benches, tool boxes, service vehicles, and machine tool stations. The 360-degree hose direction range lets the operator pull hose in any direction the job requires. Common deployments include vehicle lift systems, service units, and any flat vertical surface where a permanent or temporary hose station is needed.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals for welding gas service, both connections accessible from one side
• Enclosed, lubricated cartridge-style motor is removable without special tools for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for added strength and operator safety
• Two-bolt side-mount pattern supports quick installation and detachment for permanent or temporary workstation use
• Hose control bar prevents hose from slipping off the disc during use
• CPC powder coat finish resists chips and rust for long service life in demanding shop environments
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for oxygen-acetylene and T Grade gas welding hose applications. The side-mount configuration is compatible with vertical flat surfaces, cabinets, enclosed spaces, service vehicles, tool benches, and vehicle lift systems as described by the manufacturer.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas systems and applicable codes. Shut off all gas supply and relieve hose pressure completely before mounting or servicing the reel. Use the two-bolt mounting pattern on a structurally sound vertical surface rated to support the reel and hose assembly weight. Inspect swivel fittings and hose connections for leaks with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 38 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR17W-150
