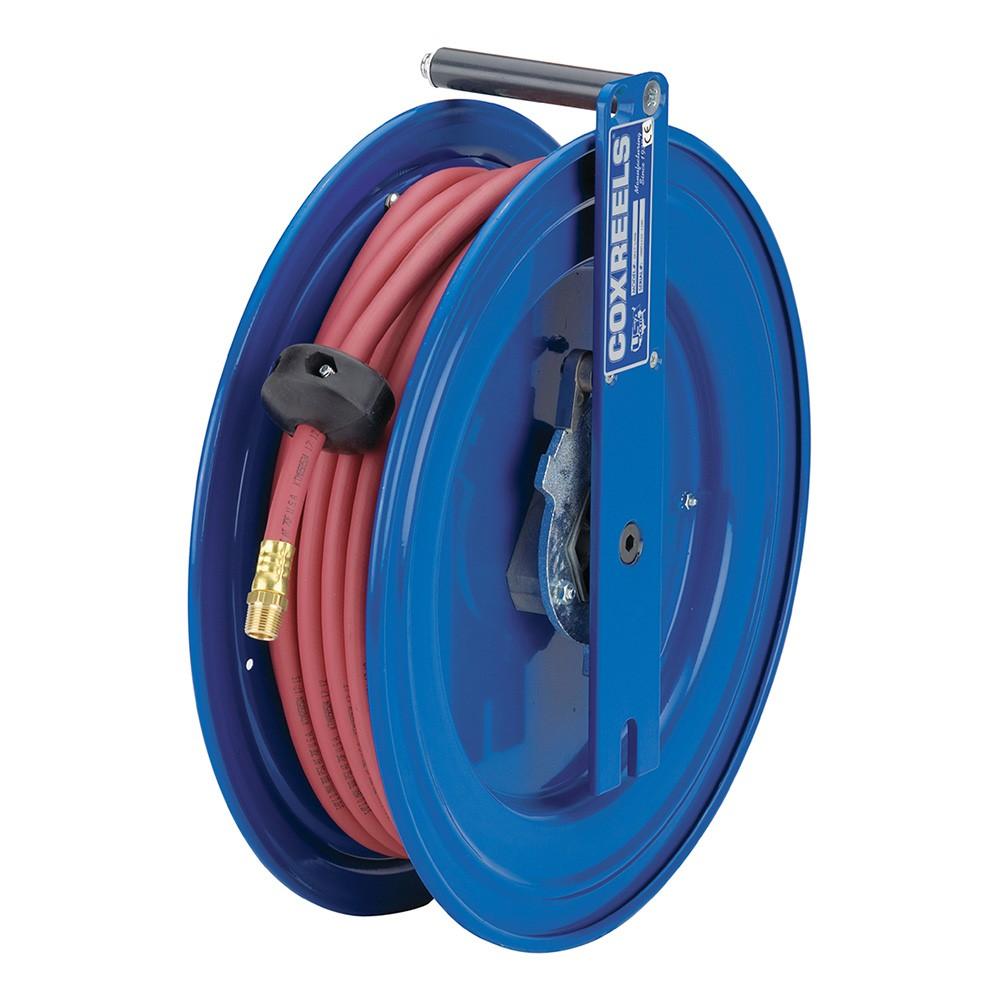

Coxreels SR17-H125 Spring Driven Hose Reel 25 Ft Side Mount

Product Description

The COXREELS SR17-H125 is a spring-driven, side-mount hose reel from the S Series line, designed for compact and versatile installations in cabinet enclosures, service vehicles, tool benches, and vertical wall or beam applications. Built with a two-bolt mounting pattern, it installs and detaches quickly, making it practical for multi-workstation setups. The reel handles 1/4 inch ID hose up to 25 feet in length and is compatible with air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose. A 360-degree hose direction capability lets the operator work in any direction without repositioning the reel.

The SR17-H125 fits a wide range of trade applications including automotive service lifts, machine tool stations, fleet and service vehicles, and fixed shop installations. Its side-mount, two-bolt design makes it a practical choice for any flat vertical surface or enclosed cabinet space where a full-size reel would not fit. Licensed HVAC technicians, plumbers, automotive service techs, and general maintenance professionals commonly use this reel type in both permanent and temporary workstation configurations.

Key Features

• Spring-driven retraction with 360-degree hose direction for flexible operation in any work orientation
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports quick installation and detachment for temporary or permanent use
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

The SR17-H125 is designed for use with 1/4 inch ID hose up to 25 feet and is rated for air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications. Suitable for cabinet mount, vertical wall, beam, service vehicle, and tool bench installations.

Installation Notes

Installation is performed using the two-bolt side-mount pattern on any flat vertical surface, cabinet interior, or enclosed space. Depressurize and disconnect the hose supply line before mounting or servicing the reel. Use appropriate thread sealant on NPT swivel connections per local plumbing or mechanical codes. The cartridge motor is field-removable for maintenance without uninstalling the reel body.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Hose Outside Diameter: 1/2 inch
• Hose Capacity: 25 feet
• Reel Length: 17.5 inches
• Reel Width: 8.5 inches
• Reel Height: 19.25 inches
• Weight: 37 pounds
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Drive Type: Spring driven
• Mount Type: Side mount, 2-bolt pattern
• Finish: CPC powder coat, chip and rust resistant
• UPC: 674255734890

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR17-H125
