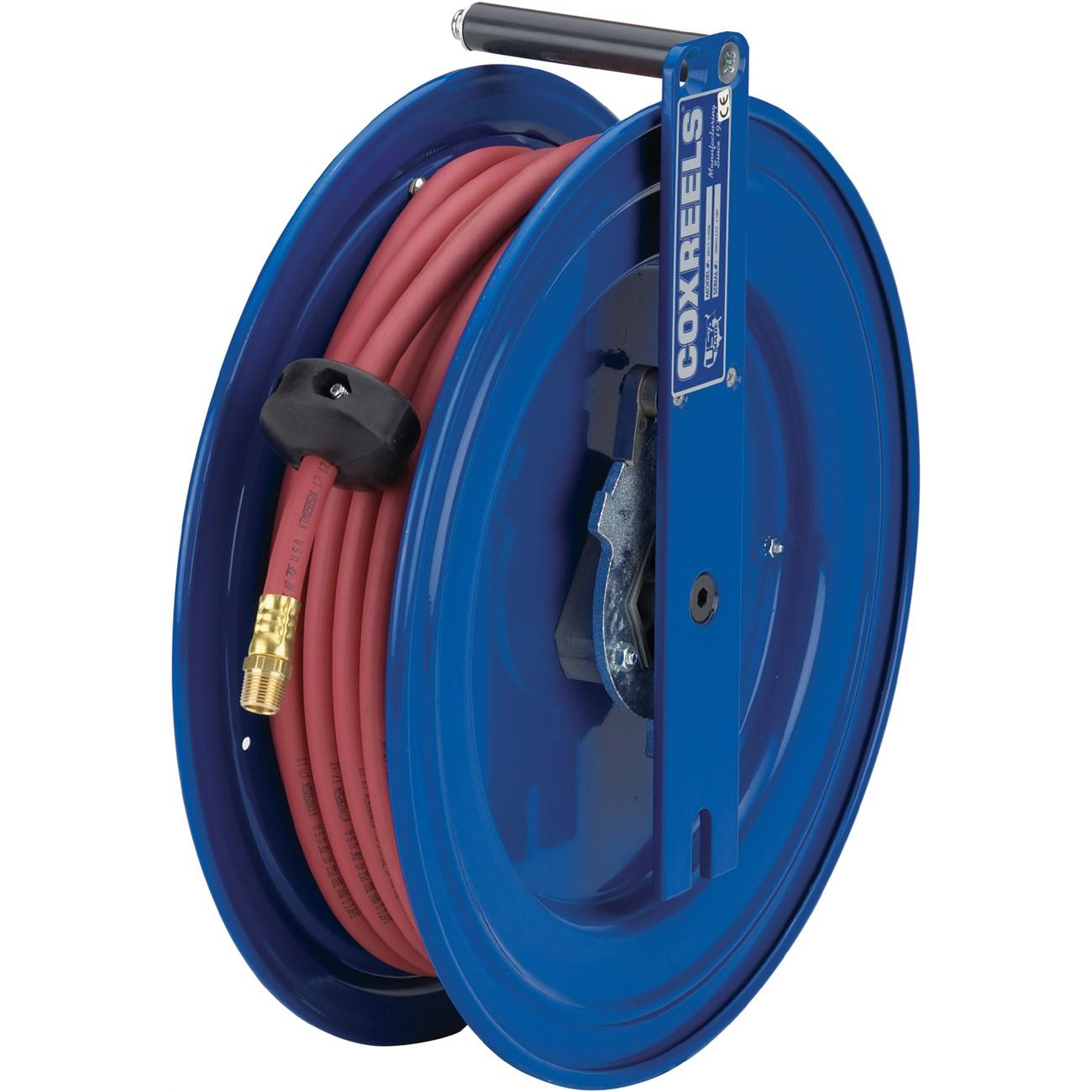

Coxreels SR15-L135 Spring Driven Hose Reel 35 Ft Side Mount

Product Description

The COXREELS SR15-L135 is a spring-driven hose reel from the S Series line, engineered for compact side-mount and cabinet-mount installations in professional service environments. It accepts hose with a 1/4 inch ID and 1/2 inch OD, with a 35-foot hose capacity. The spring motor uses a cartridge-style design that is fully enclosed and lubricated, making field maintenance straightforward without removing the reel from its mount. CNC robotically spun and ribbed discs with rolled edges provide structural rigidity and protect both the hose and the operator. This reel is installed by mechanics, fleet technicians, and general service professionals in fixed and mobile work settings.

The SR15-L135 suits a wide range of service applications including air and water lines in shop environments. Its 360-degree hose direction allows the operator to pull hose in any direction the job requires. Common installation locations include tool benches, tool boxes, service vehicles, vehicle lift systems, machine tool stations, vertical walls, beams, and enclosed cabinet spaces. The two-bolt mounting pattern supports both permanent and temporary installation, making it practical for multi-workstation or mobile service unit setups. The S Series is available for air/water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications.

Key Features

• Cartridge-style spring motor is enclosed, lubricated, and removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports fast installation and detachment for temporary or permanent use on flat vertical surfaces and cabinets
• Hose control bar prevents hose from slipping off the disc during operation
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style S Series spring-driven reel suitable for air, water, oil, grease, oxy-acetylene, and T Grade gas welding hose applications in cabinet-mount and side-mount configurations.

Installation Notes

Installation is typically performed by service technicians or mechanics using standard hand tools. Before servicing or remounting the reel, relieve all line pressure and ensure the hose is fully retracted. Follow applicable OSHA and facility safety guidelines when mounting to vehicles or enclosed cabinets. Verify the two-bolt mounting surface is rated to support the loaded weight of the reel and hose.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Mount Type: Side mount
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 22 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255733800

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR15-L135
