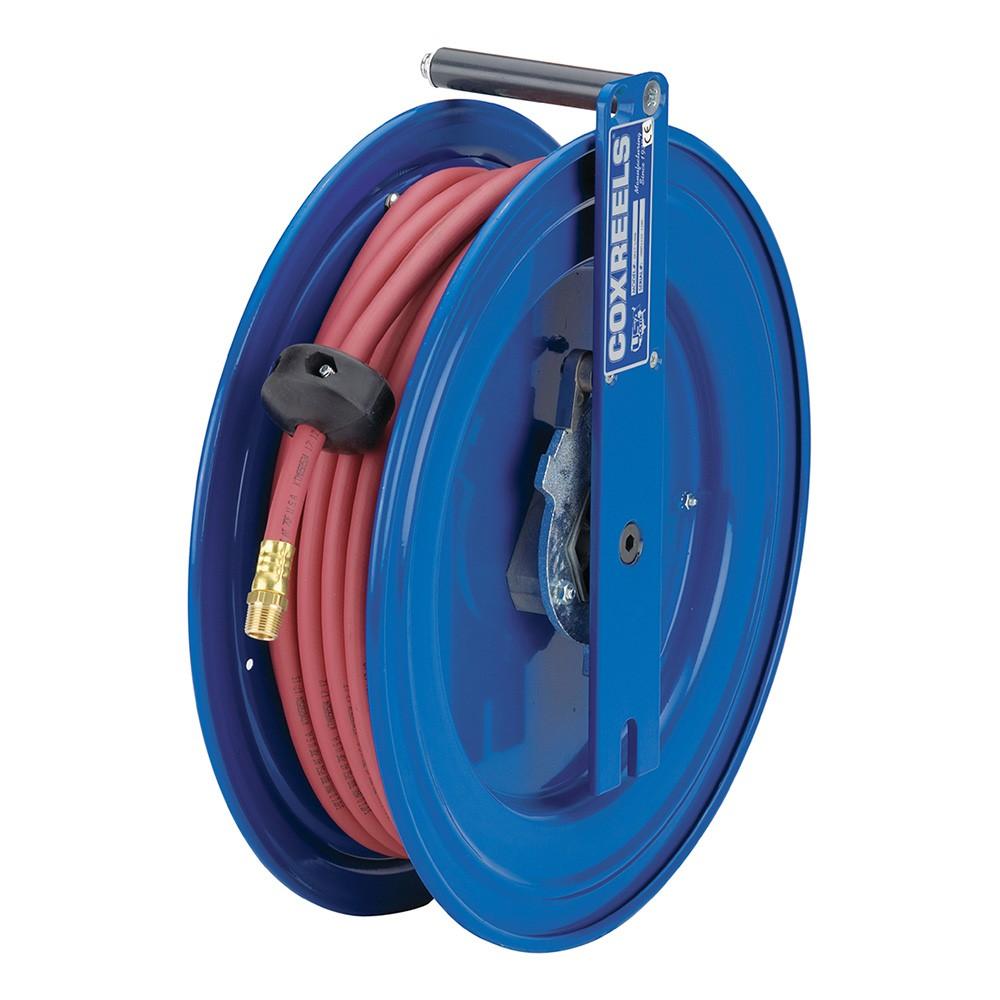

Coxreels SR13L-L125 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS SR13L-L125 is a spring-driven hose reel from the S Series, designed for cabinet and flat vertical surface mounting in demanding trade environments. Built with a steel construction and CPC powder coat finish, this reel accepts hose with a 1/4-inch ID and 1/2-inch OD up to 25 feet in length. The cartridge-style spring motor retracts the hose automatically and is enclosed for protection and easy removal during maintenance. A machined brass 90-degree full-flow NPT swivel allows hose installation without removing the reel from its mount. Licensed HVAC technicians, plumbers, mechanics, and fleet service technicians are the primary installers of this type of equipment.

The SR13L-L125 is suited for air and water service in a wide range of work settings. Compatible applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, and service vehicles. The two-bolt mounting pattern allows fast installation and removal, making it practical for multiple workstation setups or temporary installations. The 360-degree hose direction supports operation in any orientation the job requires, with no need to reposition the reel itself.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and easily removable for maintenance
• Machined solid brass 90-degree full-flow NPT swivel supports hose changes without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Two-bolt side mount pattern supports both permanent and temporary installation on flat vertical surfaces, cabinets, or enclosed spaces
• Hose control bar prevents hose from slipping off the disc during use
• Chip-resistant, rust-inhibiting CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

The SR13L-L125 is part of the COXREELS S Series and is rated for air and water hose service. It accepts hose with a 1/4-inch ID and 1/2-inch OD up to 25 feet. Typical installations include service vehicles, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, and cabinet enclosures.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Depressurize the supply line and relieve any stored hose tension before beginning mounting or hose replacement. Use the two-bolt pattern on a flat, structurally sound vertical surface rated to support the reel weight. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 0.25 inches
• Hose OD: 0.5 inches
• Hose Length: 25 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC spun and ribbed steel with rolled edges
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 18 pounds
• UPC: 674255733589

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SR13L-L125
