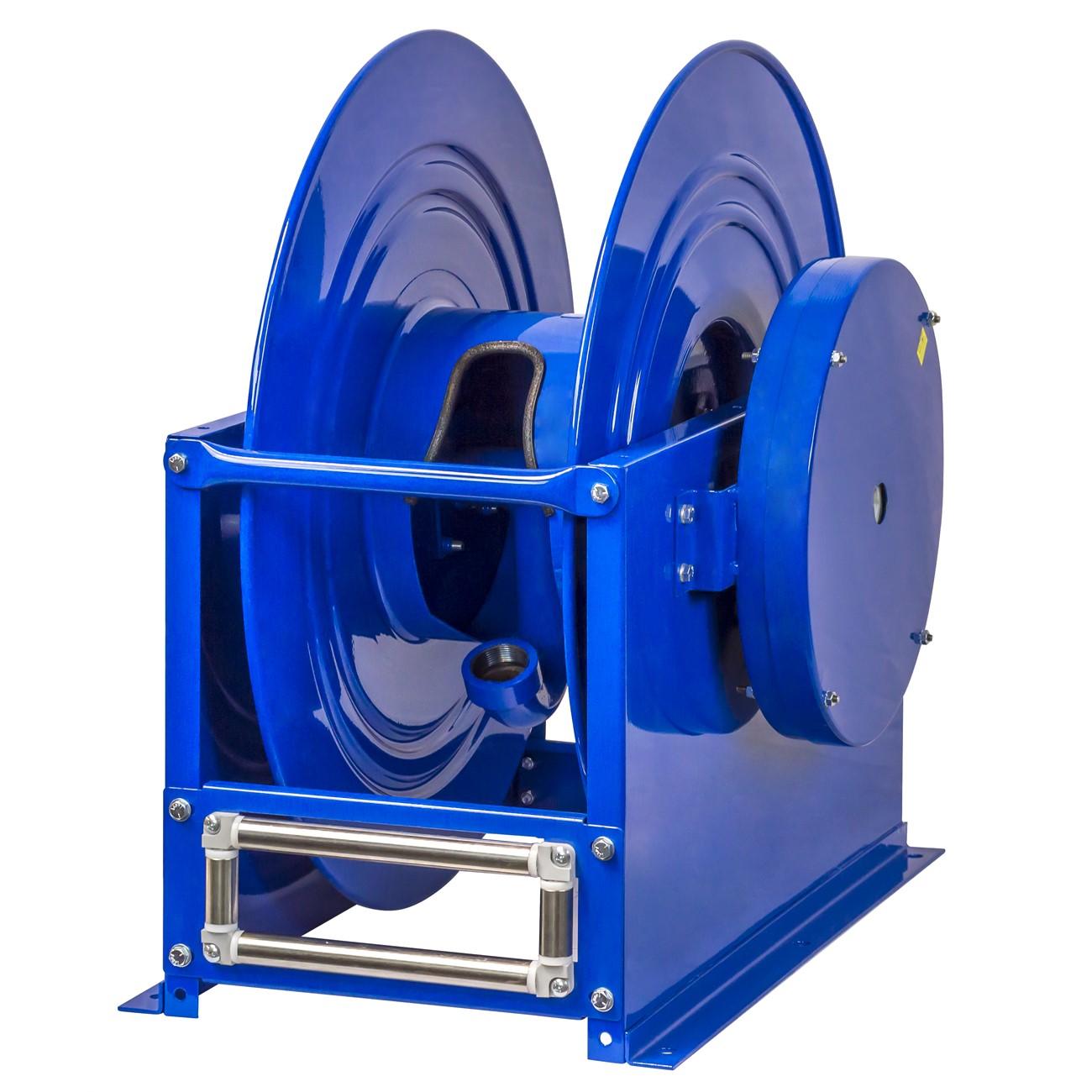

Coxreels SMPL-5100 Spring Driven Hose Reel 3/4 Inch Id

Product Description

The COXREELS SMPL-5100 is a spring-driven hose reel from the SP Series, engineered for large-hose applications requiring high-volume delivery at low to medium pressures. This reel is built around a heavy-duty box-style steel frame with cross supports reinforcing all four corners for maximum rigidity. It accepts hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter, handling up to 100 feet of hose. The cartridge-style spring motor is fully enclosed and lubricated, allowing safe removal for maintenance without special tooling. Licensed HVAC technicians, plumbers, and fluid-transfer service professionals are the primary installers of this unit.

The SMPL-5100 is suited for residential and commercial applications where large-diameter hose and high-volume flow are required at low to medium pressure. Common deployments include fuel delivery, water service, and similar fluid-transfer operations where a durable, retractable reel mounted in a fixed location improves workflow and reduces hose wear. The 100-foot hose capacity accommodates a wide range of service reach requirements in shop, fleet, or field environments.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and fully removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports at all four corners for rigidity under load
• 1 inch stainless steel pinch-proof rollers for safe hose guidance
• CPC powder coat finish resists chipping and rust for extended service life in demanding environments

Compatibility

Designed for use with hose measuring 3/4 inch inner diameter and 1-1/16 inch outer diameter, up to 100 feet in length, in low to medium pressure fuel and water delivery applications.

Installation Notes

Installation is typically performed by a qualified plumbing or fluid-systems technician. Shut off the fluid supply and relieve all pressure from the hose and supply line before mounting or servicing the reel. Secure the reel to a structurally adequate surface using hardware rated for the combined weight of the unit and filled hose. Verify that all NPT fittings are sealed with approved thread sealant and that the installation complies with applicable local codes and the fluid type being handled.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Weight: 126 pounds
• UPC: 674255820005

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMPL-5100
