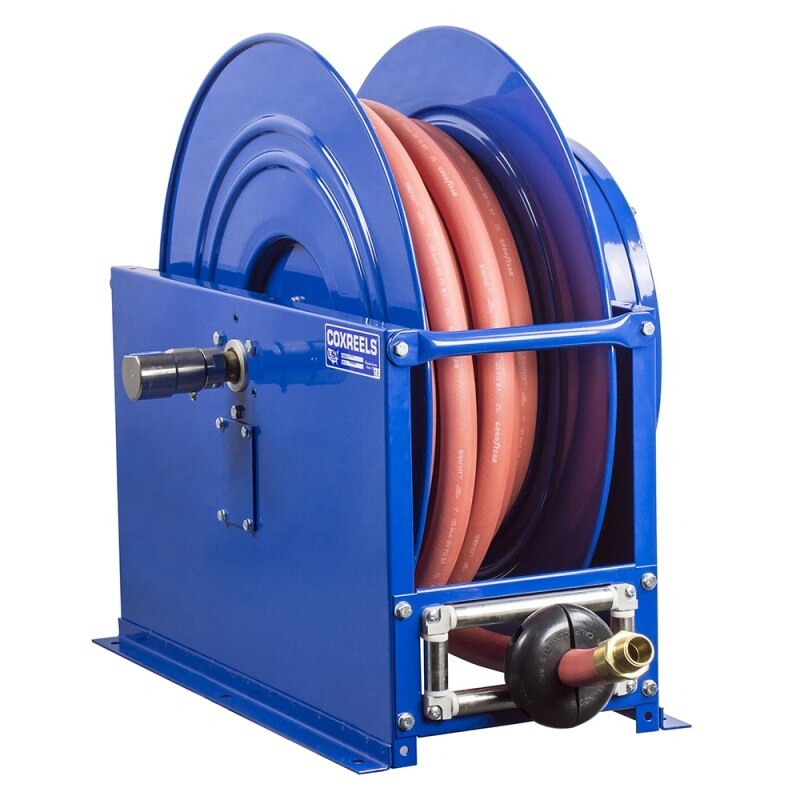

Coxreels SMP-5100 Spring Driven Hose Reel 3/4 in 100 Ft

Product Description

The COXREELS SMP-5100 is a spring-driven hose reel from the SP Series, designed for large-hose-diameter applications requiring high-volume delivery at low to medium pressures. Built for fuel and water service, this reel accepts hose with a 3/4 inch ID and 1 1/16 inch OD and holds up to 100 feet of hose. The unit weighs 163 pounds and is constructed around a box-style steel frame with heavy-duty cross supports at all four corners. Licensed contractors and service technicians in petroleum, water, and industrial fluid transfer applications rely on this reel for dependable daily operation.

The SMP-5100 fits low- and medium-pressure fluid delivery applications including fuel dispensing and water service in commercial and industrial environments. Its spring-driven retraction mechanism and large-diameter drum make it suited for high-flow-rate operations where hose management and fast retrieval matter. The box-style frame design supports permanent wall, floor, or ceiling mounting in service bays, fueling facilities, and industrial shops.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for safe and convenient field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1 inch stainless steel pinch-proof hose rollers
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with fuel dispensing hose and water hose measuring 3/4 inch ID and 1 1/16 inch OD, up to 100 feet in length, in low- to medium-pressure delivery systems.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid delivery or fuel dispensing systems and applicable local codes. Shut off all fluid supply and relieve system pressure completely before mounting or servicing the reel. Ensure the mounting surface is rated to support the reel weight of 163 pounds plus the weight of a fully loaded hose. Follow all applicable codes and the manufacturer guidelines for swivel torque and NPT thread engagement when connecting inlet plumbing.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1 1/16 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Roller Material: 1 inch stainless steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Weight: 163 pounds
• UPC: 674255824058

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMP-5100
