Coxreels SMP-4100 Spring Driven Hose Reel 1/2 Inch Id 100 Ft

Product Description

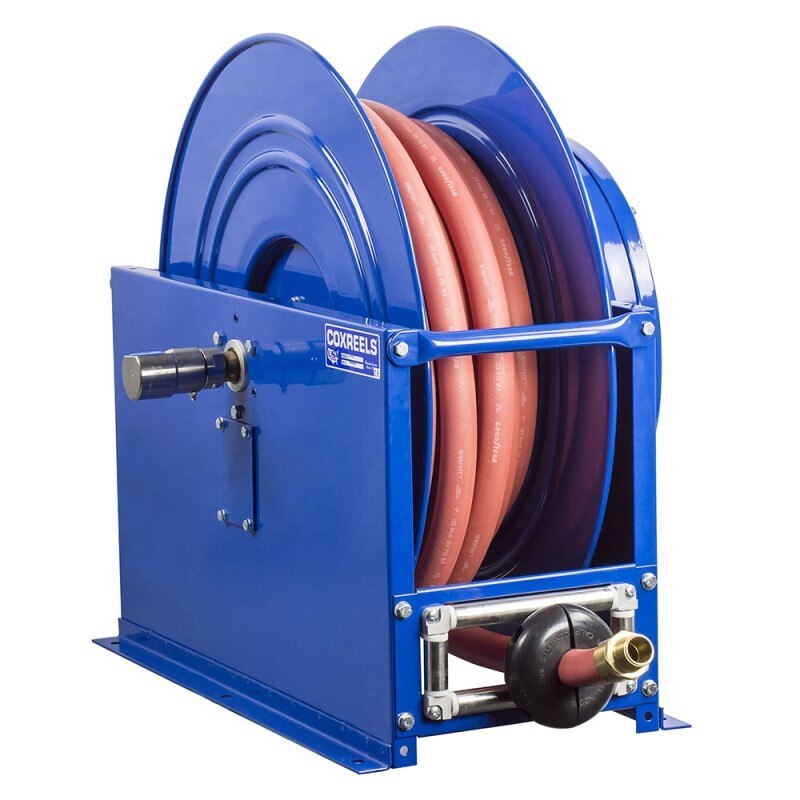

The COXREELS SMP-4100 is a spring-driven hose reel from the SP Series, designed for high-volume delivery of fuel, water, and similar fluids in low- to medium-pressure applications. It accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, with a capacity of 100 feet. The box-style steel frame features heavy-duty cross supports at all four corners, delivering the structural rigidity needed for demanding shop, fleet, and field service environments. A permanently lubricated precision bearing system and CPC powder coat finish are built in for long service life. Licensed trade professionals handling fuel dispensing or fluid transfer installations are the primary installers of this unit.

The SMP-4100 is suited for commercial and industrial settings where large-diameter hose and bulk fluid delivery are required. Typical applications include fuel dispensing, water delivery, and general fluid transfer in automotive service bays, fleet maintenance facilities, agricultural operations, and industrial plants. The spring-driven retraction mechanism keeps the hose organized and reduces trip hazards on busy shop floors.

Key Features

• Spring-driven retraction with cartridge-style motor that is fully enclosed, lubricated, and removable for maintenance without special tools
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• 1 inch stainless steel pinch-proof rollers protect hose during payout and retraction
• Adjustable solid rubber hose stop and chip-resistant, rust-inhibiting CPC powder coat finish

Compatibility

Designed as an OEM-style spring-driven reel for 1/2 inch ID hose applications in low- to medium-pressure fuel and water delivery systems.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and applicable local codes. Shut off all fluid supply and relieve line pressure before mounting or servicing the reel. Secure the reel to a structurally sound surface using appropriately rated fasteners. Verify all swivel and inlet connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Capacity: 100 feet
• Frame Material: Steel
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Weight: 139 pounds
• UPC: 674255821644

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SMP-4100
