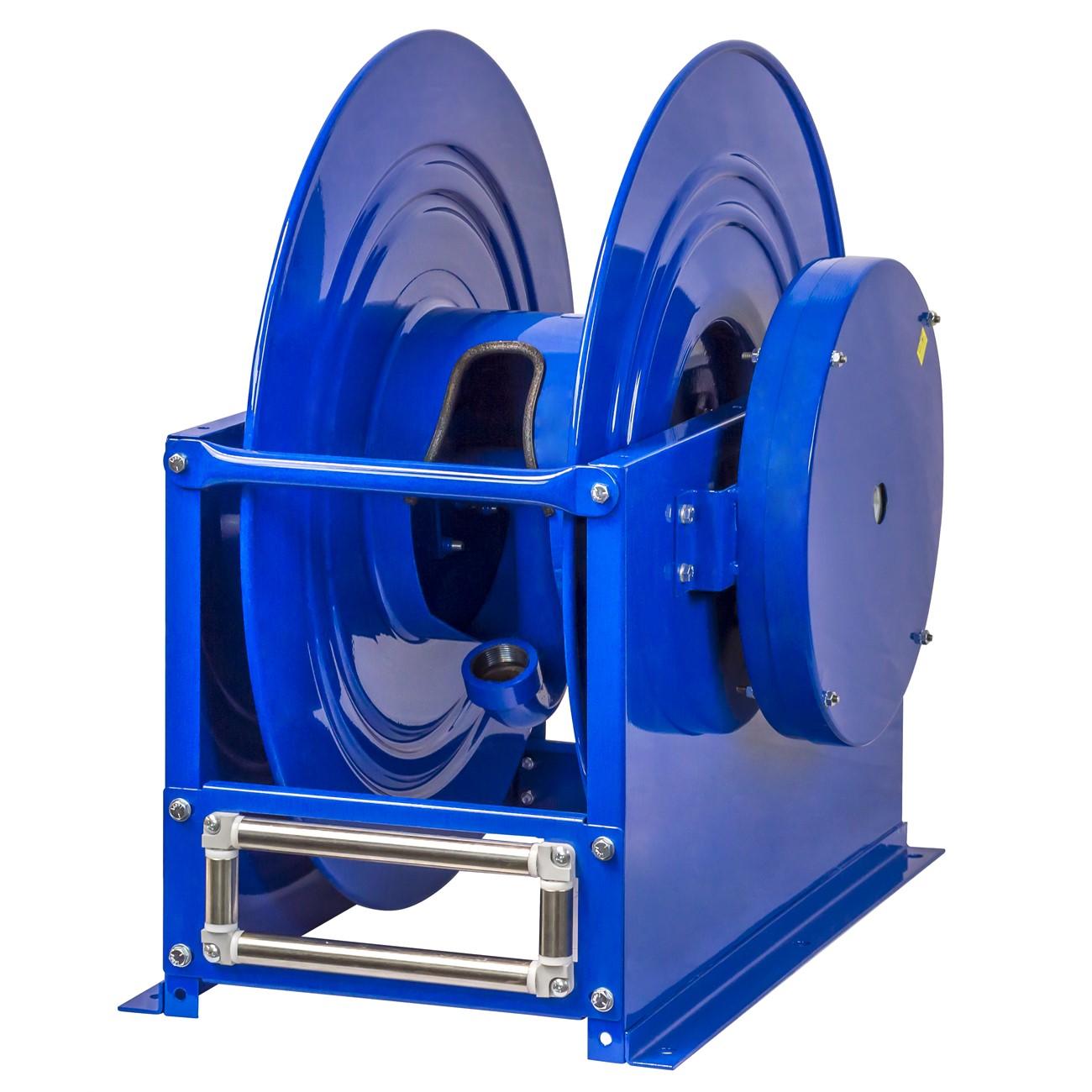

Coxreels SLPL-850 Spring Driven Hose Reel 1.5 in Id

Product Description

The COXREELS SLPL-850 is a spring-driven hose reel from the SP Series, engineered for large-diameter hose handling in high-volume, low-to-medium pressure applications. It accepts hose with a 1.5 inch inner diameter and 2.0625 inch outer diameter, accommodating up to 50 feet of hose. The unit ships at 138 pounds, reflecting its heavy-duty steel construction throughout. Licensed HVAC technicians, plumbers, fuel service technicians, and industrial maintenance crews install this reel where dependable large-volume fluid delivery is required. The box-style steel frame includes cross supports to all four corners, providing structural rigidity under sustained service loads.

The SLPL-850 is suited for fuel delivery, water service, and other large-volume fluid transfer tasks operating at low to medium pressures. The spring-driven retraction mechanism keeps hose managed and reduces manual handling time on the job. The reel is appropriate for both stationary and vehicle-mounted installations where heavy-gauge hose must be deployed and retrieved repeatedly throughout the workday. Its robust design supports demanding commercial and industrial environments where lighter-duty reels would not hold up.

Key Features

• Electroless nickel plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is fully lubricated and removable for field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Box-style reinforced steel frame with cross supports to all four corners for maximum rigidity
• Heavy-duty 1 inch stainless steel pinch-proof guide rollers
• CPC powder coat finish provides chip resistance and rust inhibition; precision bearings are permanently lubricated

Compatibility

Designed for use with hose measuring 1.5 inch inner diameter and 2.0625 inch outer diameter, up to 50 feet in length, in low-to-medium pressure fuel and water delivery applications.

Installation Notes

Installation should be performed by a qualified technician familiar with the applicable fluid system and mounting requirements. Shut off all fluid supply and relieve line pressure before connecting or disconnecting hose fittings. Ensure the mounting surface can support the loaded weight of the reel, hose, and fluid. Consult applicable local codes and the manufacturer documentation for proper swivel torque and anchoring requirements.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Frame Design: Box-style reinforced steel
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Rollers: 1 inch stainless steel, pinch-proof
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Weight: 138 pounds
• UPC: 674255830318

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-850
