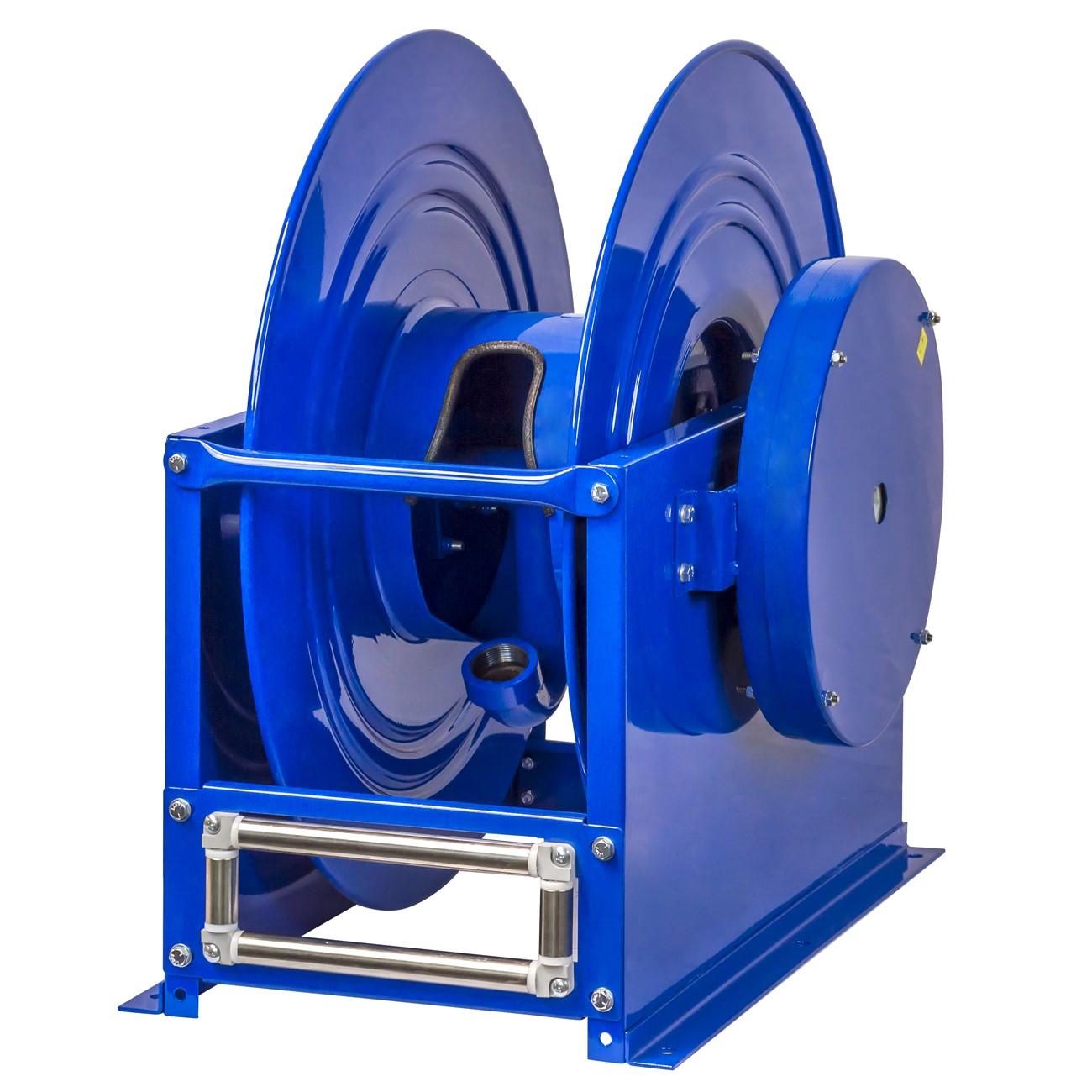

Coxreels SLPL-4100 Spring Driven Hose Reel 100 Ft Steel

Product Description

The COXREELS SLPL-4100 is a spring-driven hose reel from the SP Series, designed to handle large-diameter hose in high-demand industrial and commercial applications. Built on a box-style steel frame with heavy-duty cross supports at all four corners, this reel delivers maximum rigidity under continuous use. It accommodates hose with a 1/2 inch inner diameter and 3/4 inch outer diameter, with a 100 ft hose capacity. The unit weighs 96 pounds and is suited for fuel delivery, water supply, and similar low-to-medium pressure, large-volume transfer tasks. Licensed trades and industrial maintenance crews are the primary installers.

The SLPL-4100 is used in applications requiring large-volume fluid delivery at low and medium pressures. Common use cases include fuel dispensing, water service, and general industrial fluid transfer in both fixed and mobile installations. The spring-driven retraction mechanism keeps hose neatly stored and ready for deployment without manual rewinding. This reel is appropriate for shop floors, service vehicles, and fixed wall or ceiling mounts in commercial and industrial facilities.

Key Features

• Spring-driven retraction handles large hose diameters for high-volume, low-to-medium pressure delivery
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is removable for safe and convenient servicing
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• 1 inch stainless steel pinch-proof rollers protect hose during retraction and extension
• CPC powder coat finish resists chips and rust for long-term durability in demanding environments
• Permanently lubricated precision bearings require minimal ongoing maintenance

Compatibility

Designed for use with 1/2 inch inner diameter, 3/4 inch outer diameter hose up to 100 ft in length, suitable for fuel and water service applications requiring low-to-medium pressure, large-volume delivery.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with fluid transfer systems and applicable local codes. Shut off and depressurize the fluid supply line before mounting or connecting the reel. Secure the reel to a structurally sound surface capable of supporting the unit weight plus hose and fluid load. Verify all NPT swivel connections are properly sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 100 ft
• Drive Type: Spring driven
• Frame Material: Steel
• Swivel Material: Solid brass
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Weight: 96 pounds
• UPC: 674255819764

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPL-4100
