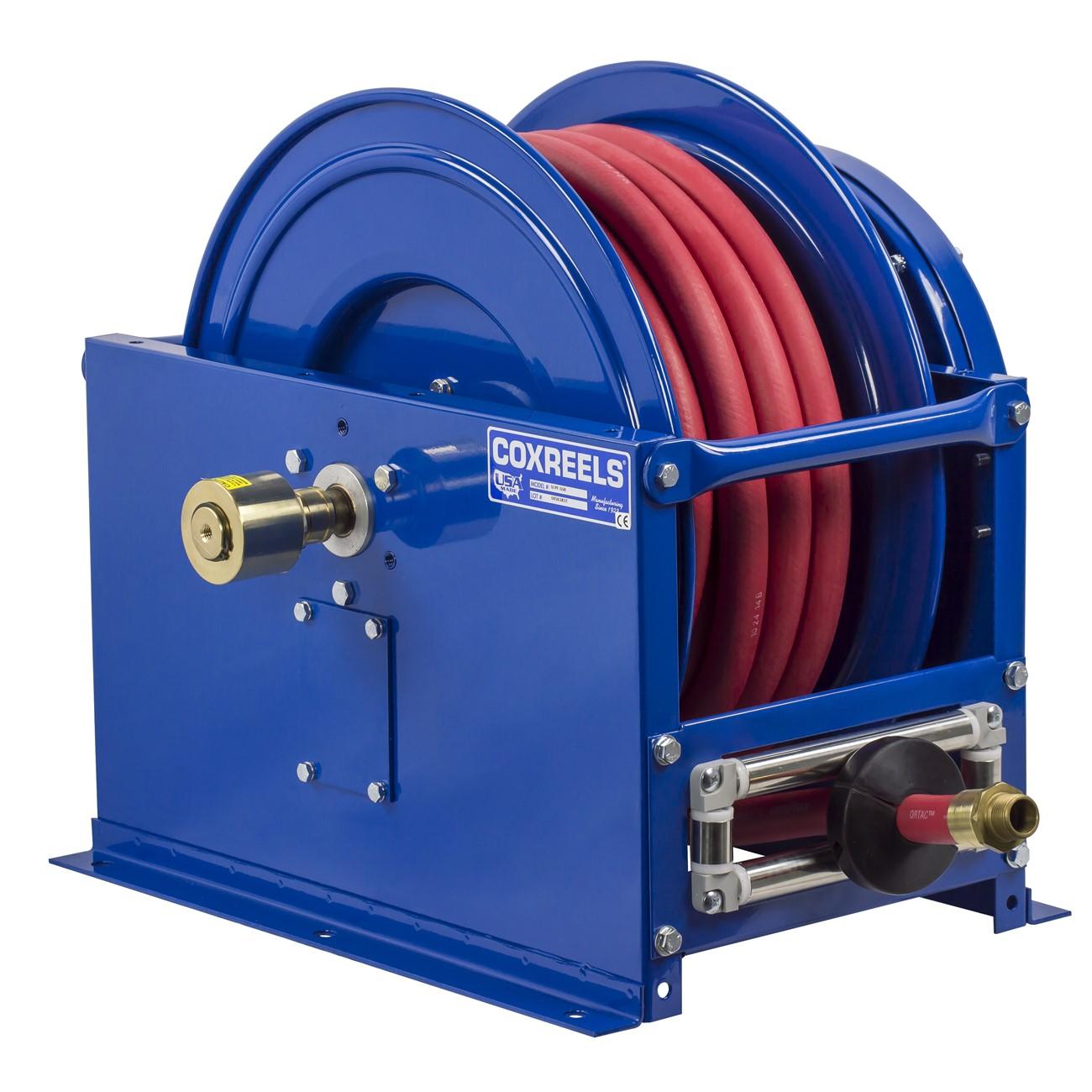

Coxreels SLPF-625 Spring Driven Fuel Hose Reel 25 Ft

Product Description

The COXREELS SLPF-625 is a spring-driven hose reel from the SP Series, engineered for large-volume fuel dispensing in low- and medium-pressure applications. It accepts hose with a 1 inch inner diameter and 1-1/2 inch outer diameter, with a 25 ft hose length. The reel is built around a box-style steel frame with heavy-duty cross supports running to all four corners, delivering the structural rigidity needed in demanding shop and fleet fueling environments. A permanently lubricated cartridge-style spring motor drives retraction and is fully enclosed for safe field maintenance. Licensed HVAC and fleet service technicians, fuel system installers, and garage equipment pros are the primary installers of this unit.

The SLPF-625 is suited for fuel dispensing stations, fleet maintenance facilities, and commercial garages where reliable large-diameter hose management is required. Its spring-driven retraction keeps hose off the floor and ready for repeated daily use. The unit ships as a single assembly and is intended for fixed wall or ceiling mounting in low- to medium-pressure fuel delivery setups. It is not rated for high-pressure hydraulic service.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without special tools
• Box-style reinforced steel frame with heavy-duty cross supports to all four corners for maximum rigidity
• Machined zinc-plated steel 90-degree full-flow NPT swivel designed for fuel dispensing service
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• 1 inch stainless steel pinch-proof hose guide rollers
• CPC powder coat finish provides chip resistance and rust inhibition; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style replacement or direct-fit unit for large-diameter fuel and water hose reel applications requiring 1 inch ID hose in low- to medium-pressure spring-driven configurations.

Installation Notes

Installation is typically performed by qualified fuel equipment technicians or licensed mechanics familiar with fuel dispensing system requirements. Shut off all fuel supply lines and relieve system pressure completely before mounting or servicing the reel. Secure the reel to a structurally adequate wall or ceiling mount rated for the unit weight prior to connecting supply lines. Follow all applicable local fire codes and NFPA guidelines governing fuel dispensing equipment installation.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-1/2 inches
• Hose Length: 25 ft
• Drive Type: Spring driven
• Frame Style: Box-style reinforced steel
• Swivel Material: Zinc-plated steel
• Swivel Type: 90-degree full-flow NPT
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Unit Length: 25.5 inches
• Unit Width: 22 inches
• Unit Height: 22 inches
• Weight: 142 pounds
• UPC: 674255821415

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SLPF-625
