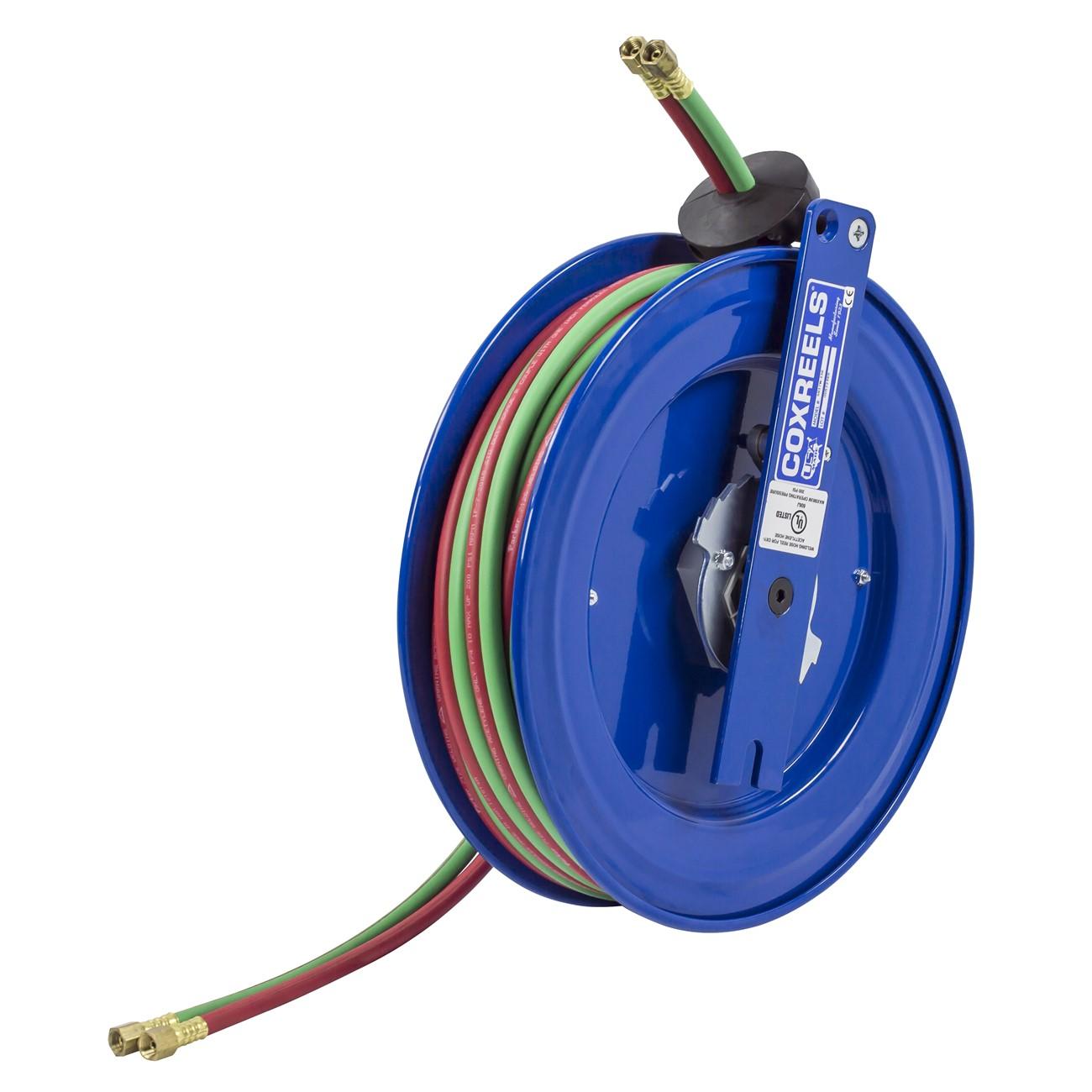

Coxreels SL17WT-150 Welding Gas Hose Reel Spring Driven

Product Description

The COXREELS SL17WT-150 is a spring-driven welding gas hose reel built for T-grade gas welding hose in demanding trade environments. Part of the COXREELS S Series, it accepts 1/4-inch ID hose up to 50 feet and mounts to cabinet interiors, vertical flat surfaces, and enclosed spaces using a simple two-bolt pattern. The reel ships ready for air, water, oil, grease, oxy-acetylene, or T-grade gas welding applications. Weighing 38 pounds and measuring 17.5 inches long by 8.5 inches wide by 19.25 inches tall, it is a compact unit with a heavy-duty steel construction. Licensed HVAC techs, plumbers, welding professionals, and fleet service technicians are the primary installers.

The SL17WT-150 fits service units, tool benches, tool boxes, vehicle lift systems, machine tools, and service vehicles. Its 360-degree hose direction lets the operator route hose in any direction without repositioning the reel. The two-bolt side mount design supports both temporary and permanent installation, making it practical for multi-workstation shop setups or mobile service vehicles where the reel may need to be relocated frequently.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals routes both connections from the same side of the reel, eliminating the need to dismount the unit for access
• Lubricated, enclosed cartridge-style spring motor is removable without special tooling for straightforward field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges provide added structural strength, hose protection, and operator safety
• Two-bolt side mount pattern supports quick installation and detachment for permanent or temporary multi-station use
• Hose control bar keeps hose seated on the disc during retraction and extension
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven side-mount hose reel for T-grade welding gas hose applications in cabinet, enclosed-space, and flat vertical surface installations.

Installation Notes

Installation is typically performed by qualified welding equipment technicians or licensed trade professionals familiar with compressed gas and welding system plumbing. Shut off all gas supply valves and relieve hose pressure completely before mounting or servicing the reel. Secure the two-bolt mounting pattern to a structural surface rated for the combined weight of the reel and fully loaded hose. Verify all swivel and hose connections for leaks using an approved leak-detection solution before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC spun ribbed steel with rolled edges
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 38 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL17WT-150
