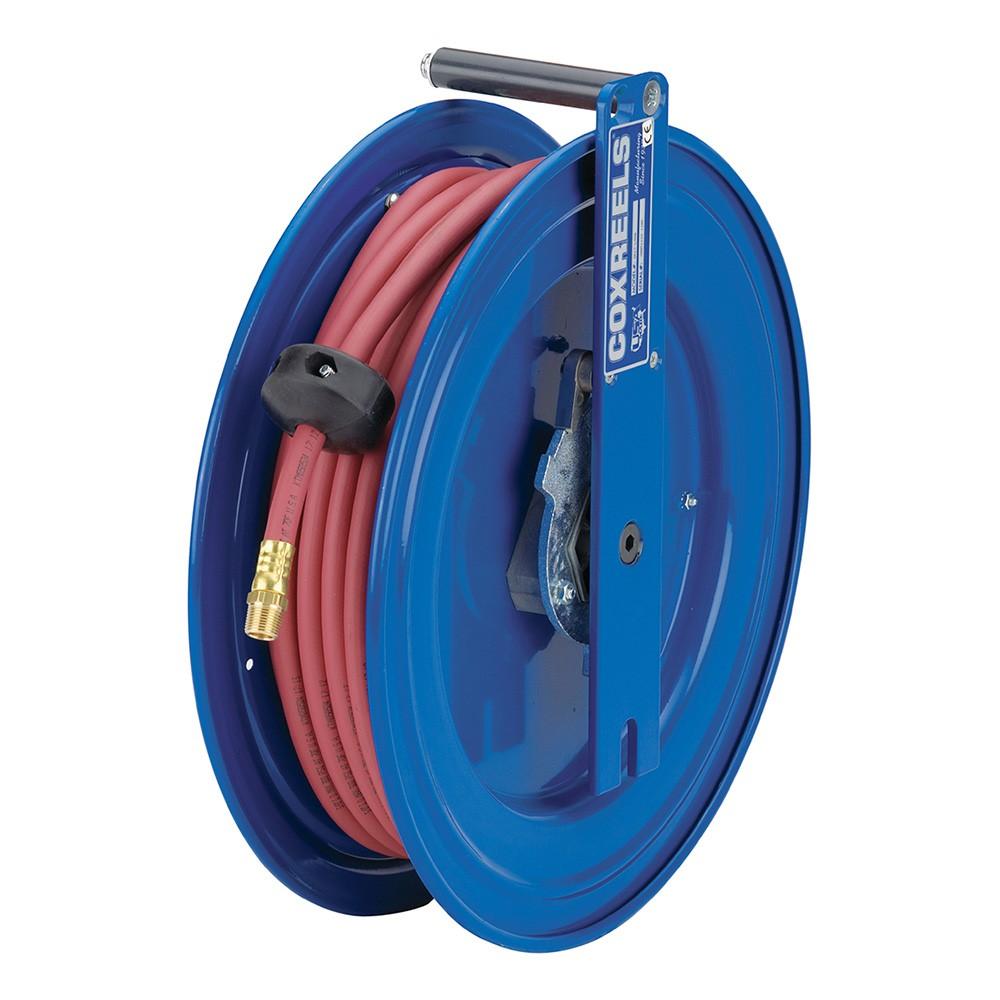

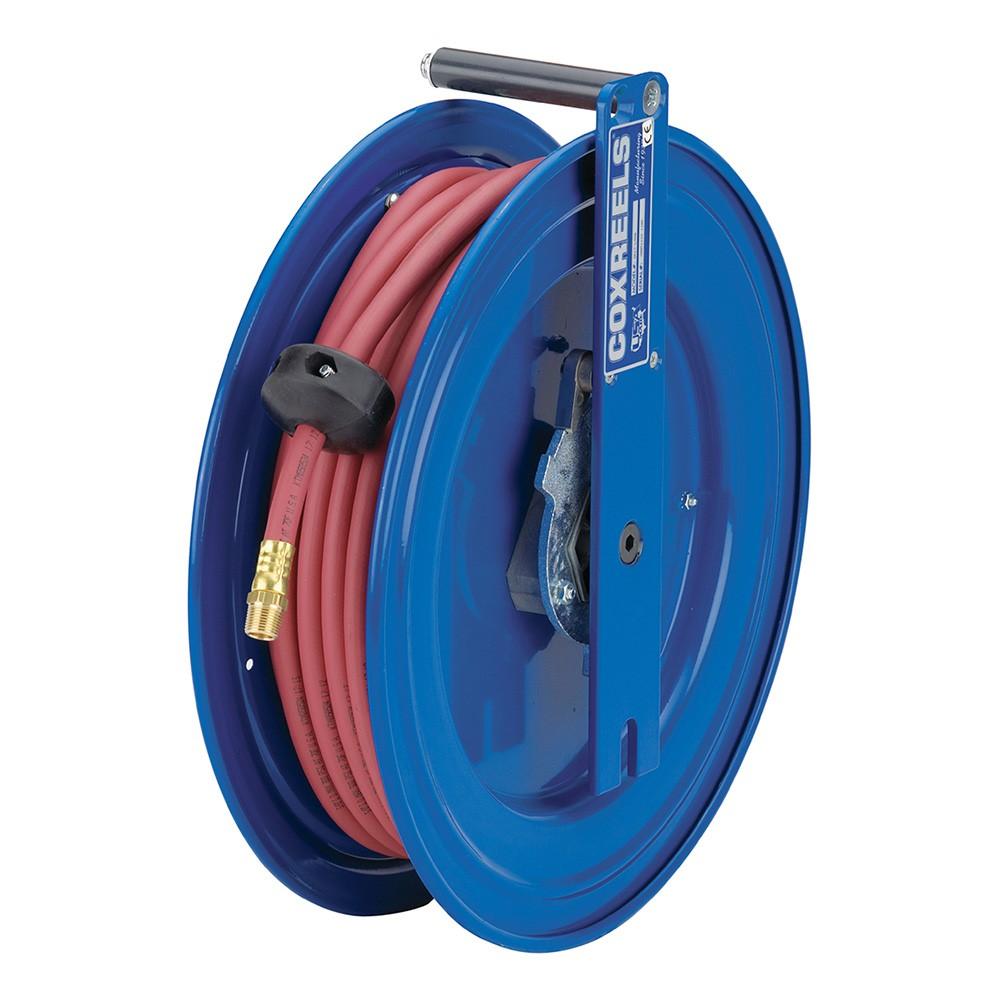

Coxreels SL17-M425 Spring Driven Hose Reel Side Mount

Product Description

The COXREELS SL17-M425 is a compact, spring-driven hose reel from the S Series line, designed for side-mount installation in cabinets, enclosed spaces, and flat vertical surfaces. It accepts hose with a 1/2-inch inner diameter and accommodates up to 25 feet of hose length. A machined solid brass 90-degree full-flow NPT swivel provides smooth fluid transfer and allows for straightforward seal maintenance without removing the reel from its mount. The cartridge-style spring motor is enclosed and lubricated from the factory, supporting long service intervals in demanding shop or field environments. Licensed tradespeople working in automotive, industrial, and mobile service applications will find this reel suited to high-cycle daily use.

The SL17-M425 is built for installations where space is limited and hose direction flexibility is required. The 360-degree hose direction capability lets the operator pull hose in any direction the job demands without repositioning the reel. Typical deployment locations include service unit compartments, tool benches, toolboxes, vehicle lift systems, machine tool stations, service vehicles, and any flat vertical surface requiring a managed hose drop. It is available for air and water, oil, grease, oxy-acetylene, and T-grade gas welding hose service.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• Enclosed, lubricated cartridge-style spring motor is removable for convenient servicing
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports quick installation and detachment for temporary or permanent setups
• Hose control bar keeps hose seated on the disc and prevents slippage
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement or direct-installation S Series spring-driven hose reel suitable for air, water, oil, grease, oxy-acetylene, and T-grade gas welding hose applications in cabinet-mount and flat vertical-surface configurations.

Installation Notes

Installation is typically performed by a licensed mechanic, millwright, or qualified service technician. Power down or depressurize any connected air, fluid, or gas lines before mounting or servicing the reel. Secure using the two-bolt mounting pattern to a structurally sound flat surface rated for the combined weight of the reel and fully loaded hose. Verify that hose fittings and swivel connections meet applicable pressure ratings before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Mount Style: Side mount
• Swivel Material: Solid brass, 90-degree NPT full-flow
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 38 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255735002

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL17-M425
