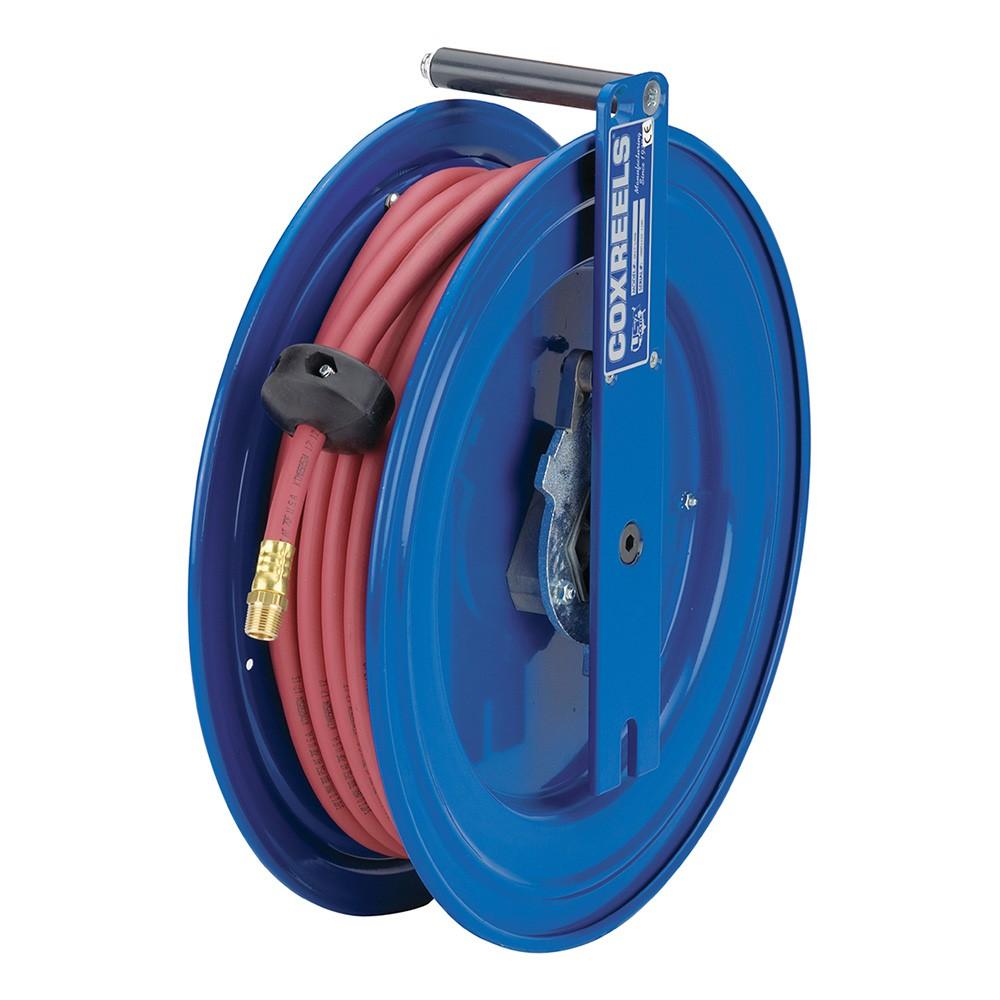

Coxreels SL17-H125 Spring Driven Hose Reel 25 Ft Side Mount

Product Description

The COXREELS SL17-H125 is a spring-driven hose reel from the S Series line, built for side mount and cabinet mount applications where space is limited and reliable hose retraction is required. Designed with a compact footprint and a simple two-bolt mounting pattern, this reel installs quickly on flat vertical surfaces, in enclosed cabinets, or on tool benches. It handles 1/4 inch ID hose up to 25 feet in length and supports 360-degree hose direction, allowing the technician to pull and operate in any direction the job demands. Licensed HVAC techs, plumbers, fleet service professionals, and shop mechanics are the primary installers.

The SL17-H125 is suited for service units, tool benches, tool boxes, vehicle lift systems, machine tools, and service vehicles. It is compatible with air and water hose applications as well as oil, grease, and oxy-acetylene service. The two-bolt mounting design makes it practical for both permanent installations and temporary multi-workstation setups where the reel needs to move between locations. The 25-foot hose capacity and side mount orientation make it a common fit for vertical wall, beam, and enclosed compartment installations.

Key Features

• Spring-driven retraction with 360-degree hose direction for flexible operation in any work orientation
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style motor is lubricated and removable for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Two-bolt side mount pattern supports fast installation and detachment for temporary or permanent use
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 1/4 inch ID hose up to 25 feet. Suitable for air, water, oil, grease, and oxy-acetylene hose service applications. Compatible with cabinet mounts, vertical flat surfaces, enclosed spaces, tool benches, and service vehicle compartments.

Installation Notes

Installation is typically performed by a qualified service technician familiar with compressed air or fluid distribution systems. Depressurize and bleed any connected air or fluid lines fully before mounting or servicing the reel. Use the two-bolt pattern with fasteners appropriate for the mounting surface material and load rating. Confirm hose fittings and NPT swivel connections are seated and leak-tested before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Mount Type: Side mount
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 37 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255734975

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SL17-H125
