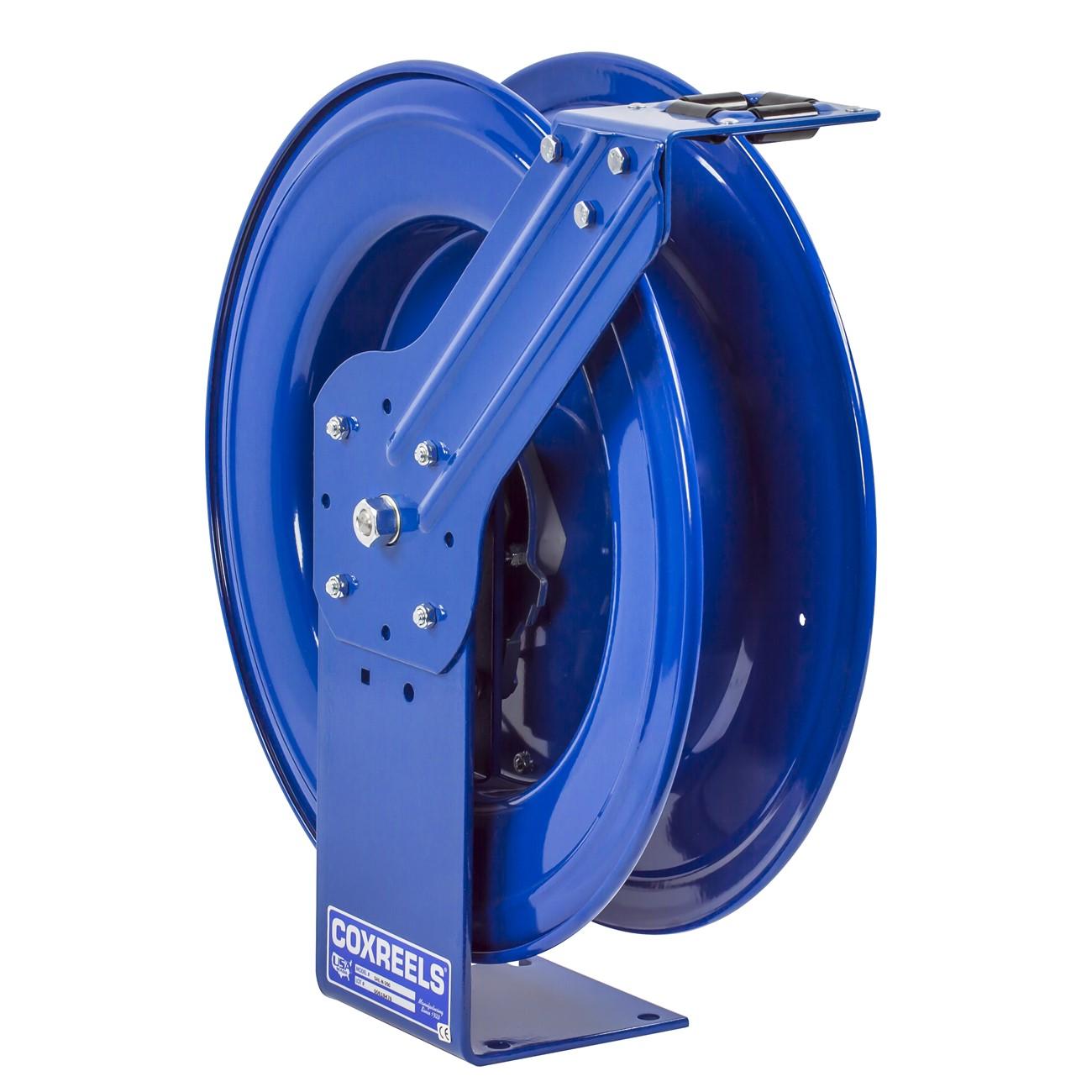

Coxreels SHL-N-375 Spring Driven Hose Reel 3/8 in 75 Ft

Product Description

The COXREELS SHL-N-375 is a spring-driven hose reel from the SH Series Super Hub line, built for industrial and trade applications where reliable hose management under repeated use is critical. The reel features a 3/8 inch ID, 5/8 inch OD hose capacity and accommodates up to 75 feet of hose. Its larger chassis and frame are designed to handle longer lengths and larger hose diameters compared to standard-duty reels. The dual axle Super Hub support system reduces vibration, increases stability during operation, and reinforces the structural integrity of the unit. Plumbers, mechanics, and industrial maintenance technicians are the primary installers and users of this reel.

The SHL-N-375 is suited for use in shops, service bays, fleet maintenance facilities, and industrial plants where a spring-retract hose reel is mounted to a wall, floor, ceiling, or service vehicle. The multi-position guide arm allows flexible mounting orientation without modification to the reel. The unit is appropriate for applications requiring consistent, hands-free hose retraction in high-cycle environments. This reel is sold as a single unit without hose included unless otherwise specified by the supplier.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge-style motor that is removable for maintenance without disturbing the mount
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece 1/4 inch steel base and support post with no-weld construction for maximum stability
• Super Hub dual axle support system reduces vibration and strengthens structural integrity under load
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; permanently lubricated precision bearings throughout

Compatibility

Designed as an OEM-style spring-driven hose reel for use with 3/8 inch ID hose up to 75 feet in length in industrial, commercial, and fleet service environments.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid hose systems. Shut off the fluid or air supply and relieve line pressure before connecting or disconnecting hose. Secure all mounting hardware to a structurally sound surface rated for the reel weight. Follow applicable OSHA and facility safety standards when mounting to overhead or vehicle surfaces.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Maximum Hose Length: 75 feet
• Drive Type: Spring-driven
• Material: Steel
• Base Construction: 1/4 inch solid one-piece steel, no-weld
• Swivel: Solid brass 90-degree full-flow NPT
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 59 pounds
• UPC: 674255729599

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-375
