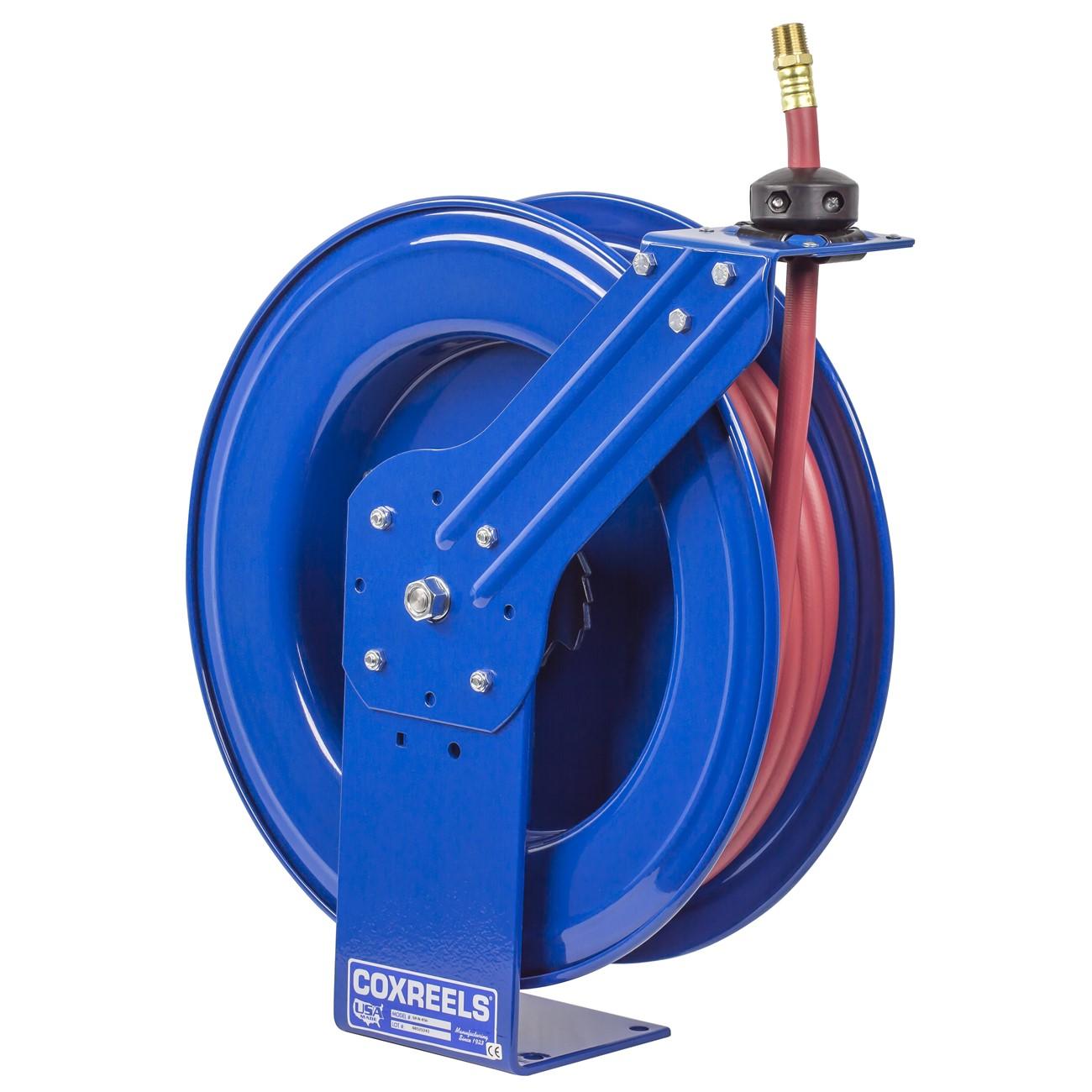

Coxreels SH-N-525 Spring Driven Hose Reel 25 Ft Steel

Product Description

The COXREELS SH-N-525 is a spring-driven hose reel from the SH Series Super Hub line, built for industrial and trade applications where reliable hose retraction and structural durability are required. The reel features a solid steel chassis with a single-pedestal base design and Coxreels dual axle support system, which reduces vibration and strengthens overall frame integrity. The 3/4 inch ID inlet accommodates a 25 ft hose length with a 1-1/16 inch OD. A machined brass full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. This unit is installed by mechanical contractors, industrial maintenance technicians, fleet service professionals, and plumbing trades.

The SH-N-525 is suited for workshop, garage, fleet maintenance, and industrial facility installations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across service environments. The spring-driven rewind mechanism provides consistent automatic hose retraction without power input. The CPC powder coat finish resists chipping and rust, supporting use in demanding service conditions. The enclosed cartridge-style motor is removable for field maintenance without specialized tooling.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor that is removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel for seal maintenance and hose installation without removing the reel from its mount
• Dual axle Super Hub support system reduces operational vibration and strengthens structural integrity
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjustable for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven hose reel for use with 3/4 inch ID hose up to 25 ft in length across industrial, fleet, and mechanical service installations.

Installation Notes

Installation is typically performed by mechanical or industrial maintenance technicians. Shut off the fluid supply completely before mounting or servicing the reel. Secure the mounting surface to support the loaded weight of the reel and hose. The guide arm should be positioned and locked before placing the hose under tension from the spring motor.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Length: 25 ft
• Drive Type: Spring driven
• Material: Steel
• Base Design: Single pedestal, one-piece steel base, no weld
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 52 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-525
