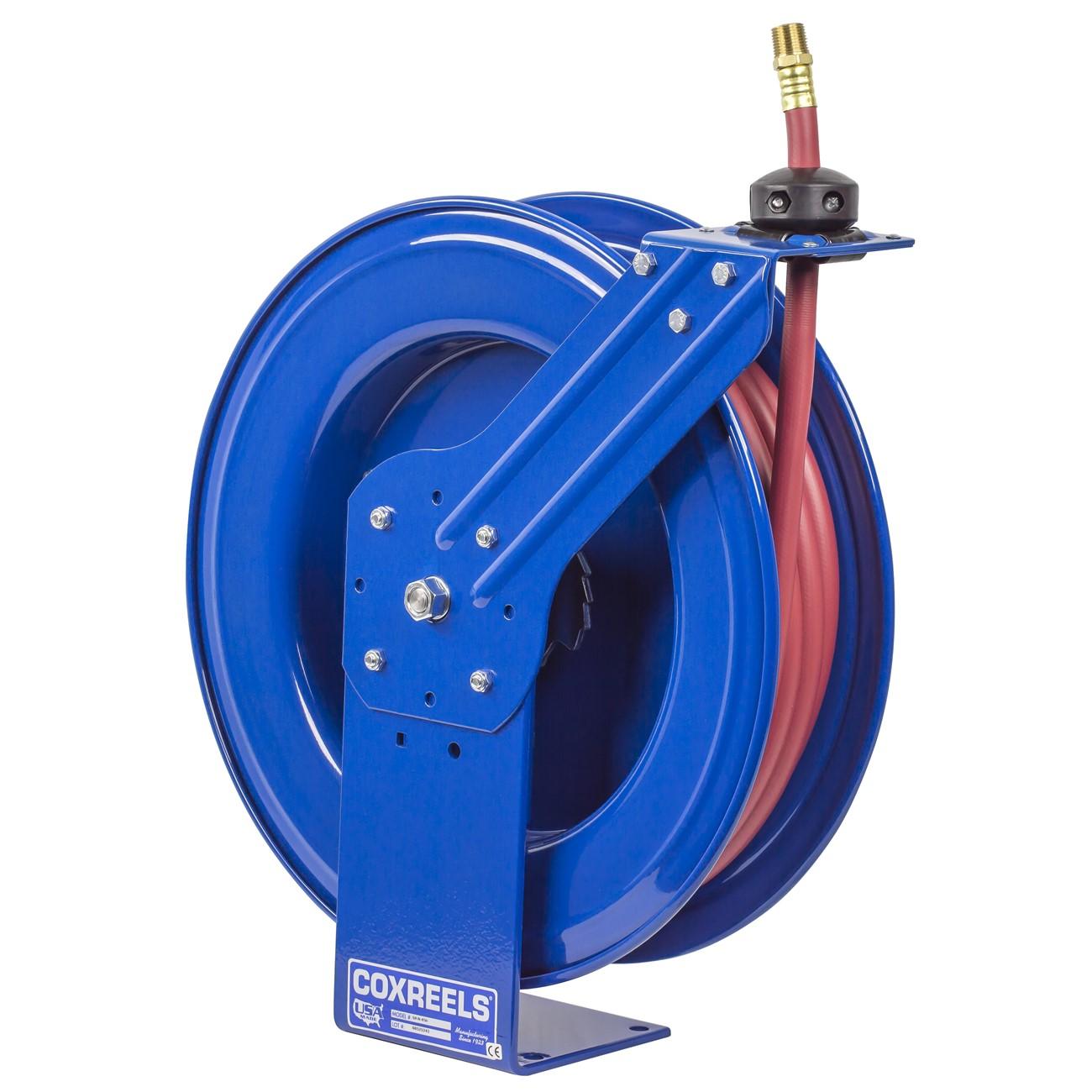

Coxreels SH-N-475 Spring Driven Hose Reel 75 Ft

Product Description

The COXREELS SH-N-475 is a spring driven hose reel built on the SH Series Super Hub platform, designed for demanding service in industrial, fleet, and facility maintenance environments. The reel accepts 1/2 inch ID hose up to 75 feet in length and features a dual axle Super Hub support system that reduces vibration and maintains structural integrity under continuous use. A cartridge-style enclosed spring motor and a machined solid brass 90-degree full-flow NPT swivel are the core mechanical components. Licensed tradespeople and maintenance technicians install and service this reel in applications where reliable hose retraction and high-cycle durability are required.

The SH-N-475 is suited for stationary and mobile installations including wall, floor, ceiling, and vehicle mounting configurations. The multi-position guide arm adjusts to match the mounting orientation without requiring reel removal. The larger SH Series chassis accommodates longer hose runs and larger hose diameters compared to standard compact reels, making it a practical choice for commercial garages, service bays, fire suppression support stations, and fleet maintenance facilities where 1/2 inch ID hose at extended lengths is standard practice.

Key Features

• Spring driven retraction with a lubricated, enclosed cartridge-style motor that is fully removable for maintenance without disassembling the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Dual axle Super Hub support system reduces operational vibration and increases structural stability
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece 1/4 inch steel base and support post with no weld construction for maximum stability
• CPC powder coat finish is chip resistant and rust inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement or direct-fit unit for applications requiring a heavy-duty spring driven hose reel with 1/2 inch ID inlet and 75-foot hose capacity in the SH Series configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure hose and fluid handling systems. Depressurize and disconnect all fluid supply lines before mounting or servicing the reel. The guide arm supports wall, floor, ceiling, and vehicle mounting orientations — confirm fastener rating matches the reel weight and expected hose load before securing. Follow applicable OSHA and facility safety codes for pressurized hose systems during commissioning.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: 1/4 inch solid steel, one-piece no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 68 pounds
• UPC: 674255729568

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-475
