Coxreels SH-N-440 Spring Driven Hose Reel 40 Ft

Product Description

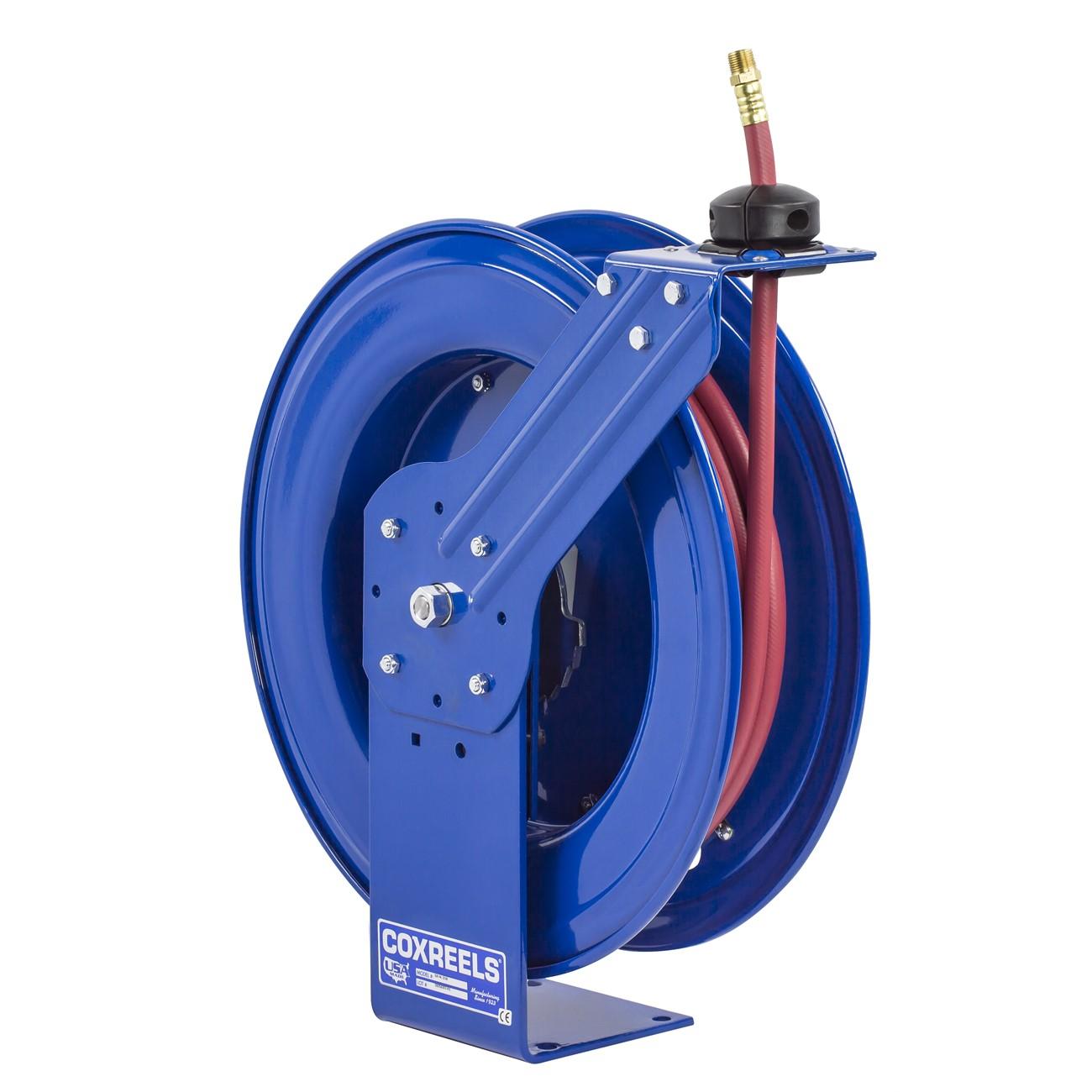

The COXREELS SH-N-440 is a spring-driven hose reel from the SH Series, also known as the Super Hub line. It features a 1/2 inch inner diameter hose path and accommodates up to 40 feet of hose. The larger chassis and dual-axle Super Hub support system distinguish this reel from lighter-duty designs, reducing vibration and increasing structural stability during operation. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. The enclosed cartridge-style motor is independently removable for maintenance. This reel is suited for industrial, fleet, and facility service applications and is typically installed by mechanics, plumbers, or maintenance technicians.

The SH-N-440 is designed for demanding service environments where longer hose lengths and larger hose diameters are required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across shop, fleet, and mobile service setups. The spring-driven retraction mechanism keeps hose organized and off the floor, reducing trip hazards and extending hose life. Applications include compressed air delivery, fluid dispensing, and water service in commercial and industrial settings.

Key Features

• Spring-driven retraction with cartridge-style motor that is removable for service without full reel disassembly
• Machined solid brass 90-degree full-flow NPT swivel supports in-place seal maintenance and fast hose installation
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single pedestal, no-weld construction and Super Hub dual-axle support system
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish rated for chip resistance and rust inhibition; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style replacement or direct-fit hose reel for industrial and commercial hose reel applications requiring a 1/2 inch ID, spring-driven spring reel with up to 40 feet of hose capacity.

Installation Notes

Installation is typically performed by a qualified mechanic, plumber, or maintenance technician familiar with hose reel mounting requirements. Shut off the supply line and depressurize the system fully before connecting or disconnecting hose or fittings. Secure the mounting surface to handle the combined weight of the reel and loaded hose; the unit weighs 52 pounds unloaded. Follow applicable facility safety codes and manufacturer torque guidance for supply-side threaded connections.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 40 feet
• Drive Type: Spring driven
• Swivel Type: 90-degree full-flow NPT brass swivel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 52 pounds
• Finish: CPC powder coat
• UPC: 674255719378

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-440
