Coxreels SH-N-4100 Spring Driven Hose Reel 1/2 in 100 Ft

Product Description

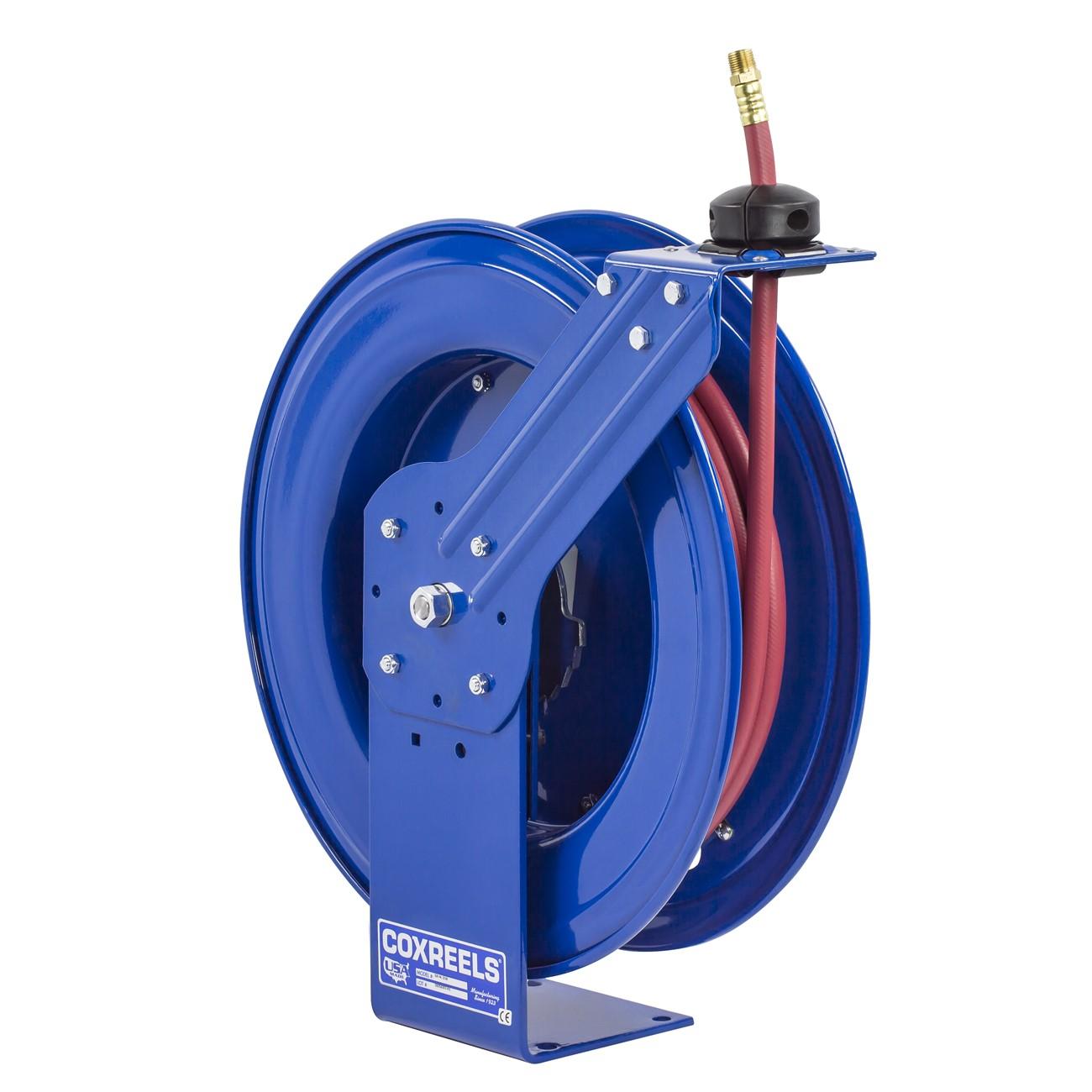

The COXREELS SH-N-4100 is a spring-driven hose reel from the SH Super Hub series, built for demanding trade and industrial applications. The reel features a solid one-piece steel base with a single pedestal design and no-weld construction, supporting a larger chassis that accommodates longer hose lengths and larger hose diameters. At 81 pounds, the SH-N-4100 is a heavy-duty unit designed for permanent or semi-permanent installation. It is intended for installation by licensed mechanics, maintenance technicians, or experienced trade professionals working in shops, fleet facilities, or industrial service environments.

The SH-N-4100 is suited for use in automotive service bays, manufacturing facilities, fleet maintenance shops, and commercial service environments where reliable hose management is required. The reel accepts a 1/2 inch ID, 3/4 inch OD hose up to 100 feet in length. Its multi-position guide arm allows mounting to walls, floors, ceilings, or vehicles, making it adaptable across a wide range of fixed and mobile service setups.

Key Features

• Spring-driven retraction with a lubricated, enclosed cartridge-style motor that is removable for maintenance without disassembling the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post, no-weld construction, with exclusive dual axle support for reduced vibration and increased structural stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct fitment option for spring-driven hose reel applications requiring a 1/2 inch ID hose capacity up to 100 feet in length.

Installation Notes

Installation is typically performed by a qualified mechanic or maintenance technician. Before mounting, ensure the intended surface or structure can support the reel weight of 81 pounds plus hose and fluid load. Power down or depressurize any connected fluid supply before servicing the swivel, motor cartridge, or hose connections. Follow all applicable facility safety and plumbing codes when connecting to a pressurized supply line.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Maximum Hose Length: 100 feet
• Drive Type: Spring driven
• Base Material: Steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Weight: 81 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• UPC: 674255729575

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-4100
