Coxreels SG19-H350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

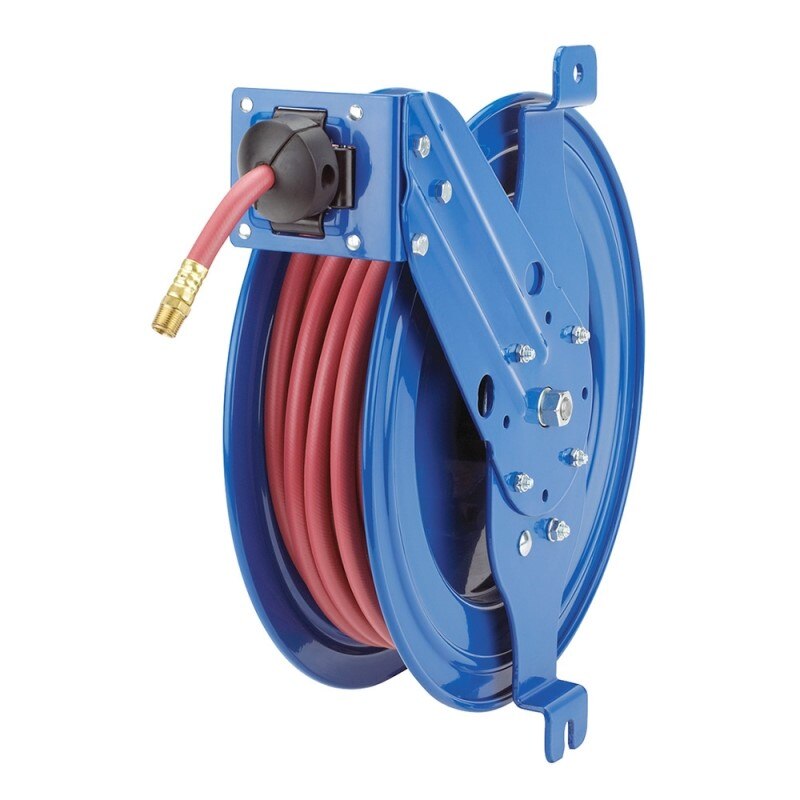

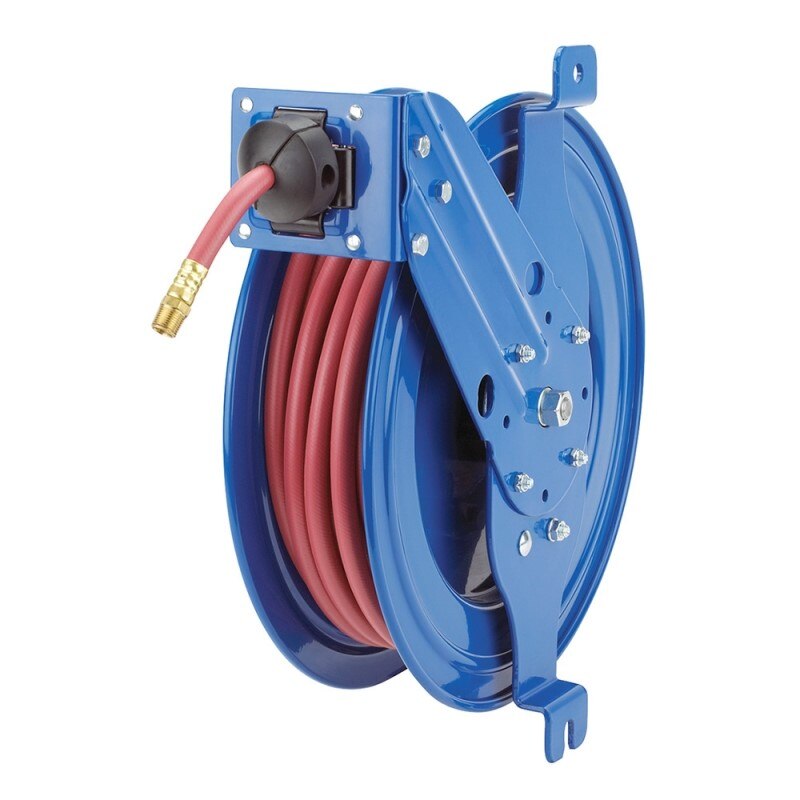

The COXREELS SG19-H350 is a side-mount, spring-driven hose reel from the SG Series, designed for controlled hose retraction in demanding service environments. It accommodates 3/8 inch ID hose up to 50 feet in length and is built for use with air, water, oil, and grease applications. The reel features a multi-position guide arm that adjusts to six different positions, giving technicians precise hose control in confined or restricted spaces. The cartridge-style spring motor is fully enclosed and lubricated, making field maintenance straightforward without specialized tooling. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount.

The SG19-H350 is suited for installation on vertical flat surfaces including service vehicle walls, tool benches, beams, machine tool stations, and vehicle lift systems. The two-bolt mounting pattern allows fast attachment and detachment for both temporary and permanent installations. This reel is a practical choice for professional service technicians, fleet maintenance facilities, and industrial workstations where repeated hose use and reliable retraction are daily requirements. Its compact footprint makes it especially well-suited for tight or enclosed mounting locations where larger reels would not fit.

Key Features

• Six-position adjustable guide arm and roller assembly for maximum hose control in confined spaces
• Enclosed, lubricated cartridge-style spring motor is removable for easy field maintenance
• Machined solid brass 90-degree full-flow NPT swivel — seal service and hose changes without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Two-bolt side-mount pattern for quick installation or removal on any vertical flat surface
• CPC powder coat finish resists chipping and rust for long service life

Compatibility

Designed for use with air, water, oil, and grease hose in 3/8 inch ID up to 50 feet. Part of the COXREELS SG Series for side-mount spring-driven reel applications on vertical flat surfaces.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic. Before mounting or servicing the reel, relieve all pressure from the connected hose and supply line. The two-bolt mounting pattern requires a flat, structurally sound vertical surface capable of supporting the reel and hose load. Guide arm position adjustments are made with a standard open-end wrench — no special tools required.

Technical Specifications

• Hose ID: 3/8 inch
• Maximum Hose Length: 50 feet
• Swivel Type: 90-degree full-flow NPT brass swivel
• Guide Arm Positions: 6
• Mounting Style: Side mount, 2-bolt pattern, vertical flat surface
• Disc Construction: CNC spun ribbed steel with rolled edges
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• UPC: 674255741614

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG19-H350
