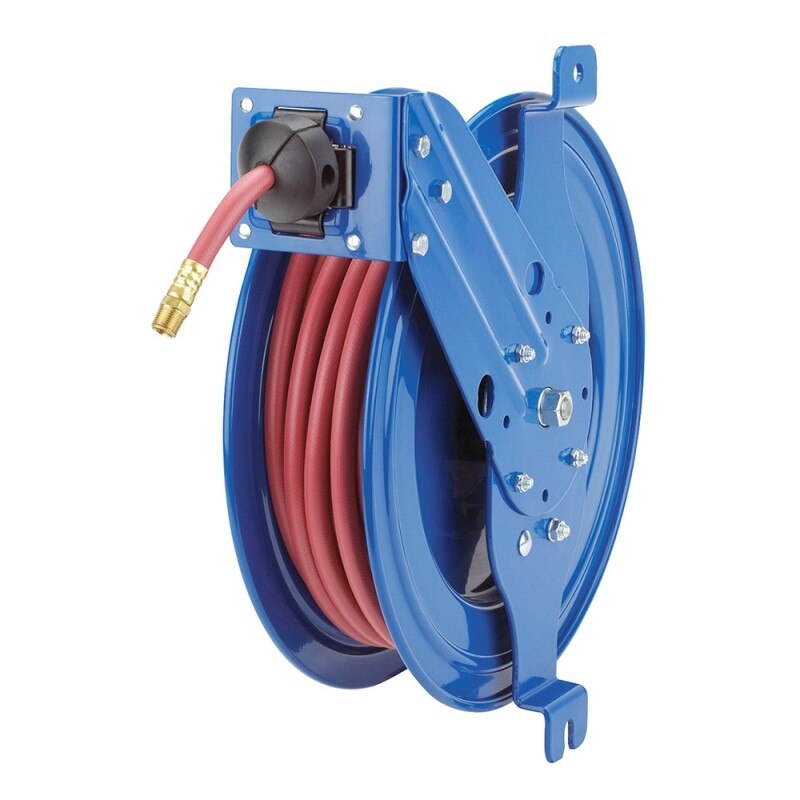

Coxreels SG17L-L430 Spring Driven Hose Reel 1/2 in 30 Ft

Product Description

The COXREELS SG17L-L430 is a spring-driven, side-mount hose reel from the SG Series, designed for controlled hose retraction in demanding trade and service environments. It accepts hose with a 1/2-inch ID and 3/4-inch OD up to 30 feet in length. The reel weighs 37 pounds and measures 17.5 inches long, 8.5 inches wide, and 19.25 inches tall. Built from steel with a CPC powder coat finish for chip and rust resistance, the SG17L-L430 is suited for air, water, oil, and grease service lines. Licensed HVAC techs, plumbers, fleet mechanics, and general service technicians are the typical installers.

The SG17L-L430 is designed for tight-space installations on vertical flat surfaces including service vehicle bays, tool benches, walls, beams, vehicle lift systems, and machine tool stations. The two-bolt mounting pattern allows fast installation and removal for both temporary and permanent setups. The six-position adjustable guide arm and roller assembly deliver flexible hose routing to suit varied work cell layouts. This reel is a practical fit for any shop or mobile service operation that requires reliable, hands-free hose retraction for air, water, oil, or grease lines.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge-style motor that is removable for maintenance without pulling the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel
• Six-position adjustable guide arm and roller assembly for maximum hose control in confined or awkward spaces
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Two-bolt side-mount pattern for quick installation or detachment on any vertical flat surface
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings require no routine greasing

Compatibility

Designed as an OEM-style side-mount spring-driven hose reel suitable for air, water, oil, and grease service lines with 1/2-inch ID hose up to 30 feet in length.

Installation Notes

Installation is performed by a qualified mechanic or service technician using standard hand tools. Depressurize and bleed the supply line before connecting or disconnecting hose fittings. Secure the reel to a structurally sound vertical flat surface capable of supporting the loaded weight of the reel and hose. Verify that all NPT swivel connections are leak-free before returning the line to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length Capacity: 30 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 37 pounds
• Material: Steel
• Mount Type: Side mount, 2-bolt vertical flat surface
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255742567

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG17L-L430
